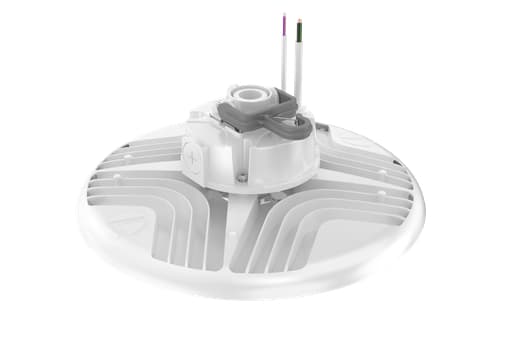

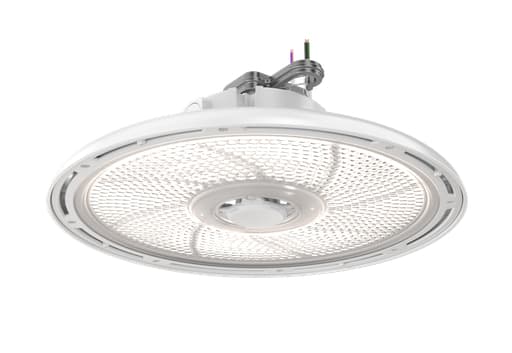

Lithonia Lighting - LITH REBL ALO16 XVOLT SWW3 80CRI DW

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 197590119554

  • Applications - Manufacturing,Retail,Warehouses

  • Catalog Number - REBL ALO16 XVOLT SWW3 80CRI DWH M2

  • Color - White

  • Color Temperature - 3500 K

Packaging

  • 1 ea

EAN

00197590119554

Part #

414613

Catalog #

REBLALO16XVOLTSWW380CRIDWHM2

Commercial reference

REBLALO16XVOLTSWW380CRIDWHM2

12-Digit UPC:

197590119554

Applications:

Manufacturing,Retail,Warehouses

Catalog Number:

REBL ALO16 XVOLT SWW3 80CRI DWH M2

Color:

White

Color Temperature:

3500 K

Country of Origin:

Vietnam

ERP_productname:

LITH REBLALO16XVOLTSWW380CRIDWHM2

Family Brand Name:

Lithonia Lighting

Finish:

Gloss

Heights:

14.57 Inch

Length:

14.57 Inch

Lens Color:

Clear

Lumens:

Switchable Lumen

Material:

Aluminum

Product Type:

High Bay

Shape:

Round

Voltage:

277-480

Wattage:

200 Watt

Widths:

4.99 in

SoneparProductId:

SKU_US_582182992

The REBL LED High Bay by Lithonia Lighting features patent pending micro-prism optics that deliver uniform and comfortable illumination across the entire space. Packaged in a sleek, yet rugged diecast housing, the REBL's unique design redefines the round high bay by combining aesthetics, optical control, and UGR performance without wasting energy. REBL is Performance Simplified. Features: TECHNOLOGY: 24,000/27,000/30,000 Adjustable Lumen Output (ALO) and 3500K/4000K/5000K Switchable White (SWW) features allow for this high bay to offer 9 potential configurations within one fixture, using two switches; ENERGY SAVINGS: High-efficiency LEDs provide up to 187 LPW; DIMMING: 0-10 volts driver for dimming down to 10 percent; RATINGS: UL/C-UL listed to US and Canadian safety standards, Wet location listed, IP66, NEMA 4X, and NSF Splash Zone 2 rated; VOLTAGE: XVOLT for 277-480 volts; HOURS OF LIFE: Greater than 70 percent LED lumen maintenance at 100,000 hours (L70>100,000); INSTALLATION: Fixture includes patented flip hook with safety latch that can be flipped down and mounted with the . inch threaded pendant mount; Optional cast loop or surface mount bracket available separately; BATTERY: Field Installable 40 watt emergency battery pack; WARRANTY: 5-year limited warranty - Application: Manufacturing; Retail; Warehouses - Mounting: Pendant; Suspended - Standard: ULDLC Premium
