Lithonia Lighting - LITH TC22LED G4 14LM 35K 90CRI MVOL

CopyCopy
Lithonia Lighting - LITH TC22LED G4 14LM 35K 90CRI MVOL

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 191848666043

  • Aperture Size - 6 in

  • Applications - Education,Government,Healthcare,Hospitality,House Of Worship,Offices & Banks,Retail

  • Catalog Number - TC22LED G4 14LM 35K 90CRI MVOLT ZT10

  • Color Rendering Index - 90

Packaging

  • 1 ea

EAN

00191848666043

Part #

494770

Catalog #

TC22LED G4 14LM 35K 90CRI MVOLT ZT10

Commercial reference

TC22LED G4 14LM 35K 90CRI MVOLT ZT10

12-Digit UPC:

191848666043

Aperture Size:

6 in

Applications:

Education,Government,Healthcare,Hospitality,House Of Worship,Offices & Banks,Retail

Catalog Number:

TC22LED G4 14LM 35K 90CRI MVOLT ZT10

Color Rendering Index:

90

Color Temperature:

3500 K

Construction:

New Construction

Country of Origin:

USA

ERP_productname:

AEON TC22LED G4 14LM 35K 90CRI 6IN LED DOWNLIGHT NON-IC RATED HOUSING, MVOLT ZT10

Environment:

Indoor

Family Brand Name:

Juno Lighting

Heights:

7 Inch

Length:

12 Inch

Lens Color:

White

Lumens:

1,400 Lumen

Mounting Type:

Recessed

Shape:

Round

Type:

Housing

Voltage:

120 Volt

Wattage:

27.8 Watt

Widths:

12 in

SoneparProductId:

SKU_US_128910328

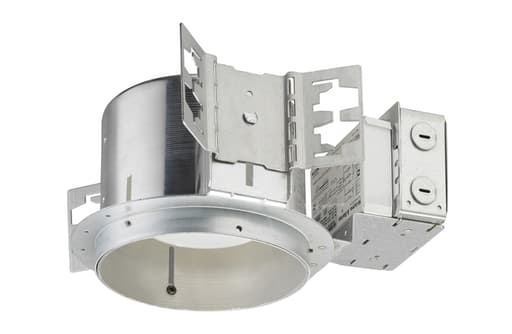

This dedicated LED new construction housing has an integral light engine. TC housing is designed for use in non-insulated areas. If installed where insulation is present, the insulation must be pulled back 3 in. from all sides of the TC housing. Applications: Education; Government; Healthcare; Hospitality; House of Worship; Offices & Banks; Retail - Features: The computer-optimized reflector is design with high reflectance white finish coupled with a high transmission diffusing lens conceals the LEDs and produces uniform aperture luminance; Energy efficient with no harmful ultraviolet or infrared wavelengths; Compatible with many standard Juno trims; ENERGY STAR certified when used with select baffle and cone trims, UL listed for U.S. and Canada through-branch wiring, damp locations, UL and cUL listed; Replaceable light engine mounts directly to housing and incorporates the latest generation, high lumen output LED array; LED housing is designed to provide 50,000 hours of life; Shallow housing; Emergency battery currently not available; 5 year limited warranty on LED components; 6-7/8 in. ceiling cutout
