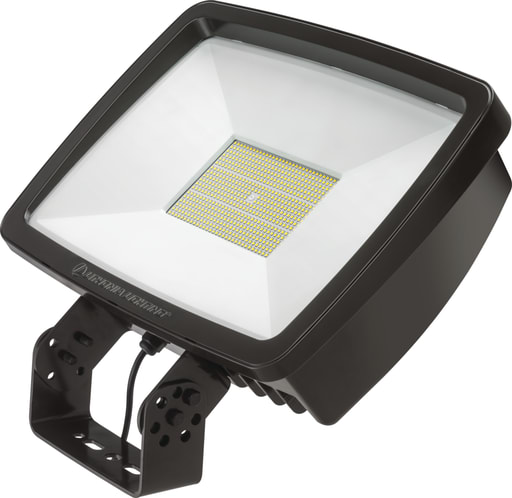

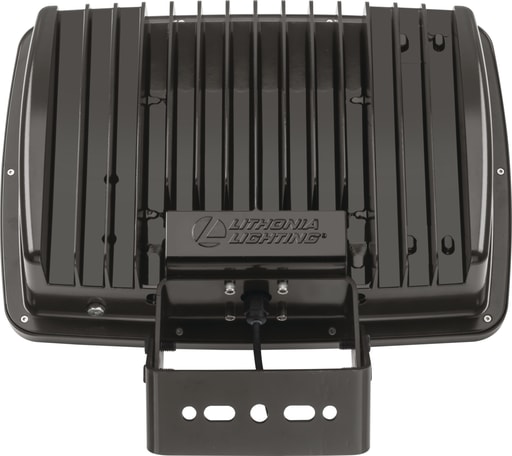

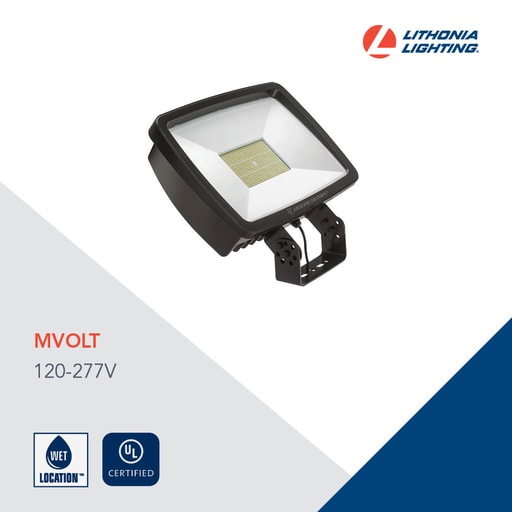

Lithonia Lighting - LITH TFX4 LED 40K MVOLT YK DDBXD Ou

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 193047670326

  • Applications - Automotive & Parking,Decorative,Education,Entertainment,Food Service,Government,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Parking Garage,Residential,Retail,Sports And Recreation

  • Catalog Number - TFX4LED40KMVOLTYKDDBXD

  • Color - Bronze

  • Color Rendering Index - 70

Packaging

  • 1 ea

EAN

00193047670326

Part #

188162

Catalog #

TFX4LED40KMVOLTYKDDBXD

Commercial reference

TFX4LED40KMVOLTYKDDBXD

12-Digit UPC:

193047670326

Applications:

Automotive & Parking,Decorative,Education,Entertainment,Food Service,Government,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Parking Garage,Residential,Retail,Sports And Recreation

Catalog Number:

TFX4LED40KMVOLTYKDDBXD

Color:

Bronze

Color Rendering Index:

70

Color Temperature:

4000 K

Country of Origin:

Mexico,Mexico

ERP_productname:

LITH TFX4LED40KMVOLTYKDDBXD YOKE MOUNT FLOOD

Environment:

Outdoor

Family Brand Name:

Lithonia Lighting

Finish:

Gloss

Fixture Type:

Floodlight

Heights:

21-5/8 Inch

Length:

6-1/8 Inch

Lumens:

41, 700 Lumen

Material:

Aluminum

Mounting Type:

Yoke

Shape:

Rectangle

Size:

22.25x22.25x21.625

Type:

Floodlight

Voltage:

120 Volt

Wattage:

296 Watt

Widths:

22.25 in

SoneparProductId:

SKU_US_191893950

The TFX4 delivers 41,300 lumens and can replace up to 1000W metal halide. The TFX LED floodlight family is an industry-leading distributor stock solution providing cost-effective and energy-efficient solutions to replace HID floodlights. In addition, payback can be achieved in less than two years, due to DLC Premium listing and 140 lumens per watt efficacy. For the full solution, the TFX comes in four sizes delivering 7,000 to 41,000 lumens replacing 70W to 1000W metal halide luminaires. Applications: Automotive & Parking; Decorative; Education; Entertainment; Food Service; Government; Hospitality; House of Worship; Manufacturing; Offices & Banks; Parking Garage; Residential; Retail; Sports and Recreation - Features: TECHNOLOGY: The TFX LED flood luminaire is a cost-effective, energy-efficient and long-life solution for replacing metal halide or HPS floodlights; ENERGY SAVINGS: Replace up to 1000W metal halide while saving 74% in energy costs; CONTROLS: Hardwired on/off capability only; RATINGS: UL Certified to meet US and Canadian standards, suitable for wet locations, IP66 rated, DesignLights Consortium® (DLC) Premium qualified product; VOLTAGE: 120V-277V and the yoke mount option allows mounting to solid surfaces and has a 30 inch SO cord and is suitable for aiming in any orientation while being tilted from 0± horizontal facing downwards up to 180± horizontal facing upwards; HOURS OF LIFE: Light engine(s) configurations consist of high-efficacy LEDs and LED lumen maintenance is L84/100,000 hours; FINISH: Die-cast aluminum main body with optimal thermal management that both enhances LED efficacy and extends component life where the light engines and housing are IP66 rated and sealed against moisture or environmental contaminants; BATTERY BACKUP: No emergency battery back-up available in this version; WARRANTY: Five-year limited warranty; DIMENSIONS: 22-1/4 in x 21-5/8 in x 6-1/8 in - Standards: ULDLC Premium
