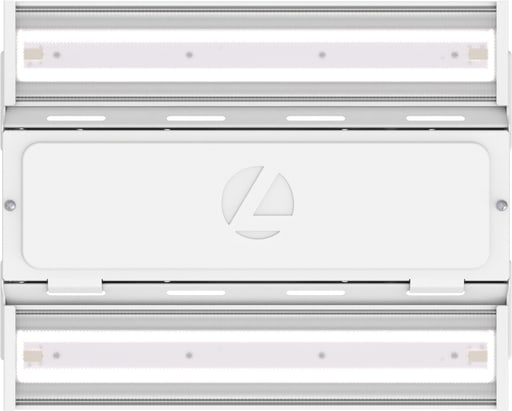

Lithonia Lighting - Lithonia CPHB-18LM-MVOLT-50K Compact Pro™ 14" Industrial LED High Bay Fixture, 120-277V, 18,485 Lumens, 5000K, White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 194994429630

  • Applications - For Retrofit, Warehouses

  • Catalog Number - CPHB18LMMVOLT50K

  • Color - White

  • Color Rendering Index - 80

Packaging

  • 1 ea

EAN

00194994429630

Part #

177068

Catalog #

CPHB18LMMVOLT50K

Commercial reference

CPHB18LMMVOLT50K

12-Digit UPC:

194994429630

Applications:

For Retrofit, Warehouses

Catalog Number:

CPHB18LMMVOLT50K

Color:

White

Color Rendering Index:

80

Color Temperature:

5000 K

Construction:

New Construction,Remodel

Country of Origin:

Mexico

ERP_productname:

LITH CPHB18LMMVOLT50K LED HIGH BAY FIXTURE 18000LM 120/277V 5000K

Environment:

Indoor

Family Brand Name:

Lithonia Lighting

Finish:

Gloss

Fixture Type:

High Bay

Heights:

2.3 Inch

Length:

14.4 Inch

Lens Color:

Clear

Lumens:

18,000 Lumen

Material:

Aluminum

Mounting Type:

Pendant,Surface,Suspended

Product Type:

High Bay

Shape:

Rectangle

Size:

14.4x11.5x2.3 IN

Sub Brand:

Contractor Select

Tc Connection:

Hardwired

Type:

High Bay

Voltage:

120 Volt

Wattage:

134 Watt

Widths:

11.5 in

SoneparProductId:

SKU_US_207351884

The Compact Pro High Bay by Lithonia Lighting delivers an industrial-grade lighting solution in an exceptionally compact fixture that provides for cheaper shipping, condensed storage, and quicker installation. Built with quality to last and performance to get the job don, all at an affordable price. Mounting: Pendant; Surface; Suspended - Application: Common Areas; Education; Government; Manufacturing; Offices & Banks; Retail; Retrofit; Warehouses - Features: TECHNOLOGY:Glare reduction optics featuring WhiteOptics® Technology allowing for maximum light output while reducing glare; ENERGY SAVINGS:LEDs provided 80 color rendering index (CRI), nominal 12,000 lumens at 4000K with a cool white color temperature; DIMMING: Thermally protected driver standard with 0-10V dimming; RATINGS: Suitable for damp location, CSA listed.; VOLTAGE: Multi-volt driver, 120-277V standard; HOURS OF LIFE: 70% lumen maintenance at > 100,000 hours; INSTALLATION: Fixture is suitable for mounting by chain, cable, surface-mount bracket, pendant monopoint, or hook monopoint; BATTERY: LED emergency driver sold separetly; WARRANTY: Buy with confidence, 5 year limited warranty - Standard: CSADLC Premium
