Lithonia Lighting - Lithonia CPX-2X4-ALO8-SWW7-M2 LED Flat Panel 2x4, 3500-4300-5500, 35/40/50K Switchable White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 193048542844

  • Applications - Budget Conscious School, Commercial Office or Small Retail Footprint Projects

  • Catalog Number - CPX 2X4 ALO8 SWW7 M2

  • Color - White

  • Color Rendering Index - 80

Packaging

  • 1 ea

EAN

00193048542844

Part #

158752

Catalog #

CPX2X4ALO8SWW7M2

Commercial reference

CPX2X4ALO8SWW7M2

12-Digit UPC:

193048542844

Applications:

Budget Conscious School, Commercial Office or Small Retail Footprint Projects

Catalog Number:

CPX 2X4 ALO8 SWW7 M2

Color:

White

Color Rendering Index:

80

Color Temperature:

3500/4000/5000 K

Construction:

New Construction,Remodel

Country of Origin:

China,China

ERP_productname:

LITH CPX2X4ALO8SWW7M2 LED FLAT PANEL 2X4 SELECTABLE LUMENS AND SWITCHABLE COLOR TEMP 35/40/50K

Environment:

Indoor

Family Brand Name:

Lithonia Lighting

Finish:

Semi-Gloss

Fixture Type:

Flat Panel

Heights:

1.7 Inch

Length:

47.8 Inch

Lens Color:

White

Lumens:

3,813 - 6,563 Im

Material:

Steel

Mounting Type:

Recessed

Shape:

Rectangle

Size:

47.875x23.875x1.68

Sub Brand:

Contractor Select

Tc Connection:

Hardwired

Type:

Rectangular, Switchable

Voltage:

120 Volt

Wattage:

51 Watt

Widths:

23.8 in

SoneparProductId:

SKU_US_192390945

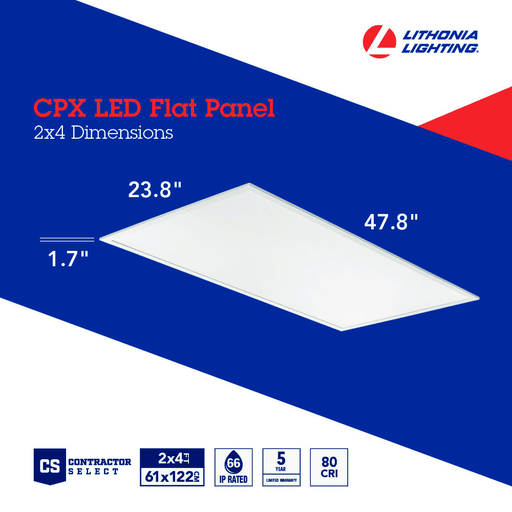

The 2 ft. x 4 ft. CPX panel from Lithonia Lighting is the perfect choice for a quality LED panel at an affordable price. The smooth, even lens projects a crisp and clean aesthetic. This CPX configuration offers Adjustable Light Output (ALO) for the option of 3800-6200 lumens and Switchable White (SWW) for three color temperature in one - 35/40/50K CCT. CPX is the perfect choice for budget-conscious school, commercial office, or small retail footprint projects. Features: TECHNOLOGY: Adjustable Lumen Output (ALO) and Switchable White (SWW) features allow for this panel to offer 9 potential configurations within one fixture, using two switches; ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life; DIMMING: 0-10 volts driver for dimming down to 10 percent; RATINGS: Certified for damp locations, CSA certified, IC rated, DLC Standard; VOLTAGE: Standard MVOLT for 120-277 volts; HOURS OF LIFE: Greater than 70 percent LED lumen maintenance at 50,000 hours (L70>50,000); INSTALLATION: can be recessed, suspended or surface box mounted with additional kit; BATTERY: Field-installable LED emergency driver (PS1055CP) sold separately; WARRANTY: 5-year limited warranty; DIMENSIONS: (l x w x h) 47.8 in. x 23.8 in. x 1.7 in. - Applications: Education; Government; Hospitality; House of Worship; Offices & Banks; Residential; Retail - Standards: CSADLC Premium; DLC Standard
