Lithonia Lighting - Lithonia ESXF1-ALO-SWW2-KY-DDB-M2 34W LED Floodlight, Selectable Lumens 1500 - 5000, Switchable CCT 3K/4K/5K, 120V-277V, Photocell, Knuckle & Yoke, Mounting Plate - Bronze

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 196182393204

  • Applications - Automotive & Parking,Decorative,Education,Entertainment,Food Service,Government,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Parking Garage,Residential,Retail,Sports And Recreation

  • Catalog Number - ESXF1-ALO-SWW2-KY-DDB

  • Color - Bronze

  • Color Rendering Index - 80

Packaging

  • 1 ea

EAN

00196182393204

Part #

144124

Catalog #

ESXF1ALOSWW2KYDDB

Commercial reference

ESXF1ALOSWW2KYDDB

12-Digit UPC:

196182393204

Applications:

Automotive & Parking,Decorative,Education,Entertainment,Food Service,Government,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Parking Garage,Residential,Retail,Sports And Recreation

Catalog Number:

ESXF1-ALO-SWW2-KY-DDB

Color:

Bronze

Color Rendering Index:

80

Country of Origin:

Vietnam,Vietnam

ERP_productname:

LITH ESXF1ALOSWW2KYDDB AREA LIGHT

Environment:

Outdoor

Family Brand Name:

Acuity Brands Lighting

Finish:

Gloss

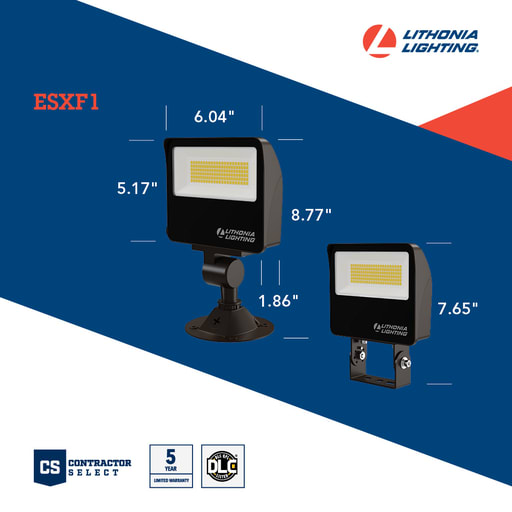

Heights:

1.86 Inch

Length:

7.65 Inch

Lumens:

1,500 Lumen

Material:

Aluminum

Mounting Type:

Knuckle,Yoke

Shape:

Rectangle

Sub Brand:

Contractor Select

Type:

Floodlight

Voltage:

120 Volt

Wattage:

34 Watt

Widths:

6.04 in

SoneparProductId:

SKU_US_585744017

The Lithonia Lighting ESXF LED all-in-one floodlight gives you the precise illumination you want, whenever and wherever. ESXF delivers easy access to adjustable lumen output, color switching, and a selectable photocell, so you always have the luminaire you need on the spot. Features: DESIGN: The Lithonia Lighting® ESXF LED is the all-in-one floodlight, providing easy access to adjustable lumen output (ALO), tri-level CCT switching, and selectable dusk-to-dawn photocell; ENERGY SAVINGS: Energy-efficient LEDs with a lumen output of 1500, 3000, and 5000 lumens; SELECTABLE: Adjustable Lumen Output, Switchable CCT (3000K, 4000K, 5000K) and Standard Photocell; RATINGS: IP66 Rated aluminum housing, DLC Certified, CSA certified to US and Canadian standards; VOLTAGE: MVOLT (120-277V), utilizes electronic drivers that are 0-10V, capable of continuous dimming and ensure system power factor >90% and THD <20%; INTENDED USE: Designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing traditional sources; INSTALLATION: Ships with . NPT threaded knuckle mount factory installed and can be mounted to conduit bodies or to 4\" electrical boxes using the provided round mounting plate, included yoke mounts can be easily changed in the field; CONSTRUCTION: Sealed die-cast aluminum body and IP66 listed to withstand moisture and the elements; WARRANTY: Five-year limited warranty; DIMENSIONS: 5.17 in. x 6.04 in. x 1.86 in.; Ideal for parking areas, street lighting, walkways and car lots - Applications: Automotive & Parking; Decorative; Education; Entertainment; Food Service; Government; Hospitality; House of Worship; Manufacturing; Offices & Banks; Parking Garage; Residential; Retail; Sports and Recreation - Standards: C-UL-USDLC Premium
