Lithonia Lighting - Lithonia JEBL-18L-40K-80CRI-WH LED High Bay Fixture, White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 191848153895

  • Applications - For Warehousing, Gymnasiums, Manufacturing and Outdoor Canopies, Indoor and Wet Locations

  • Catalog Number - JEBL 18L 40K 80CRI WH

  • Color - White

  • Color Rendering Index - 80

Packaging

  • 1 ea

EAN

00191848153895

Part #

200162

Catalog #

JEBL18L40K80CRIWH

Commercial reference

JEBL18L40K80CRIWH

12-Digit UPC:

191848153895

Applications:

For Warehousing, Gymnasiums, Manufacturing and Outdoor Canopies, Indoor and Wet Locations

Catalog Number:

JEBL 18L 40K 80CRI WH

Color:

White

Color Rendering Index:

80

Color Temperature:

4000 K

Construction:

New Construction,Remodel

Country of Origin:

Vietnam,Vietnam

ERP_productname:

LITH JEBL18L40K80CRIWH LED HIGHBAY

Enclosure Rating:

IP65

Enclosure Type:

IP65

Environment:

Indoor

Family Brand Name:

Lithonia Lighting

Finish:

Gloss

Fixture Type:

High Bay

Heights:

5 Inch

Length:

13 Inch

Lens Color:

White

Lumens:

18,000 Lumen

Material:

Aluminum

Mounting Type:

Pendant, Suspended

Shape:

Round

Sub Brand:

Contractor Select

Type:

High Bay

Voltage:

120 Volt

Wattage:

135 Watt

Widths:

13 in dia

SoneparProductId:

SKU_US_25253660

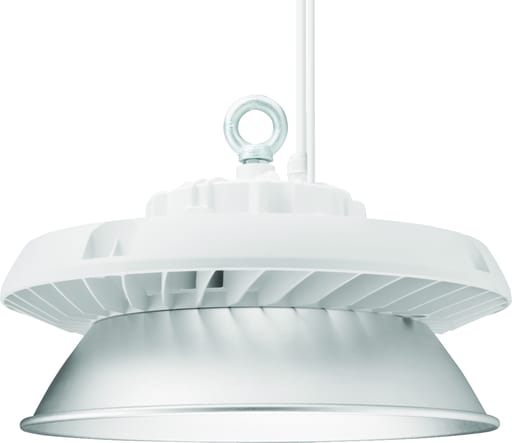

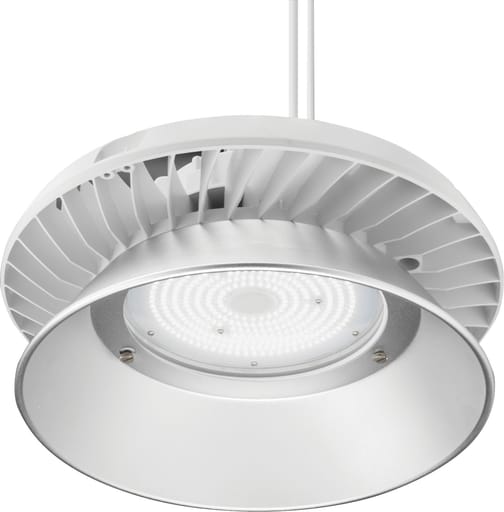

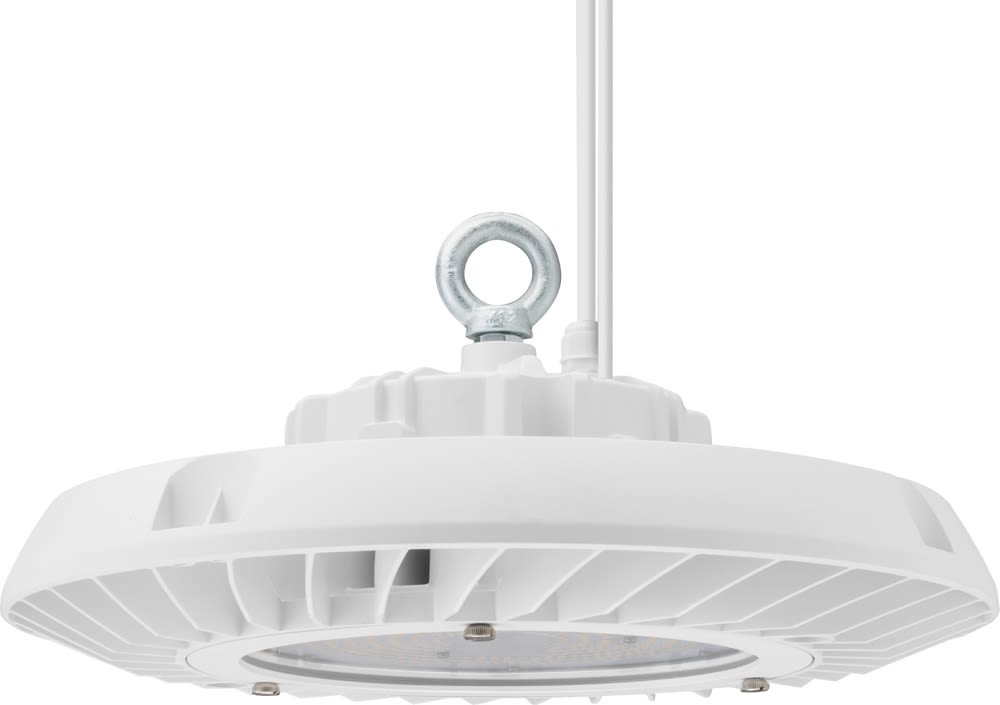

This low-profile, entry-level high bay comes standard with features not found in comparable competitor product such as die-cast aluminum construction, quick-disconnect driver housing and 6kV surge protection making JEBL extremely durable giving building owners peace of mind and it's easy to install, with mounting and reflector options, the JEBL high bay can be used in multiple indoor and outdoor applications. Features: TECHNOLOGY: JEBL features a white die-cast aluminum housing along with a removable die-cast aluminum driver housing. Powder coat corrosion resistant finish provides 500 hours salt fog rating.; ENERGY SAVINGS: Easily replace 4-lamp T5HO, 6-lamp T8 with LEDs that save energy and reduce total cost of ownership; DIMMING: 0-10V dimming standard for a dimming range of 100 to 10 percent; RATINGS: CSA listed to US and Canadian Safety Standards; Wet location listed; VOLTAGE: Input voltage is MVOLT (120-277V) and HVOLT (347-480V); HOURS OF LIFE: L90 > 54,000 hours; INSTALLATION: Install 1/4 in. NPT eye bolt with 1/2 in. thick loop and 6 ft. cord with dimming lead provided for easy installation and optional surface mount brackets; BATTERY: Field-installable LED emergency driver sold separately; WARRANTY: 5-year limited warranty; DIMENSIONS: diameter 13 in. x depth 5 in. - Applications: Manufacturing; Warehouses - Standards: cUL; ULDLC Premium; DLC Standard
