Lithonia Lighting - Lithonia JEBL-24L-50K-80CRI-WH LED High Bay, White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 191848153956

  • Applications - For Warehousing, Gymnasiums, Manufacturing and Outdoor Canopies, Indoor and Wet Locations

  • Catalog Number - JEBL 24L 50K 80CRI WH

  • Color - White

  • Color Rendering Index - 80

Packaging

  • 1 ea

EAN

00191848153956

Part #

206639

Catalog #

JEBL24L50K80CRIWH

Commercial reference

JEBL24L50K80CRIWH

12-Digit UPC:

191848153956

Applications:

For Warehousing, Gymnasiums, Manufacturing and Outdoor Canopies, Indoor and Wet Locations

Catalog Number:

JEBL 24L 50K 80CRI WH

Color:

White

Color Rendering Index:

80

Color Temperature:

5000 K

Construction:

New Construction,Remodel

Country of Origin:

Vietnam,Vietnam

ERP_productname:

LITH JEBL24L50K80CRIWH LED HIGH BAY

Enclosure Rating:

IP65

Enclosure Type:

IP65

Environment:

Indoor

Family Brand Name:

Lithonia Lighting

Finish:

Gloss

Fixture Type:

High Bay

Heights:

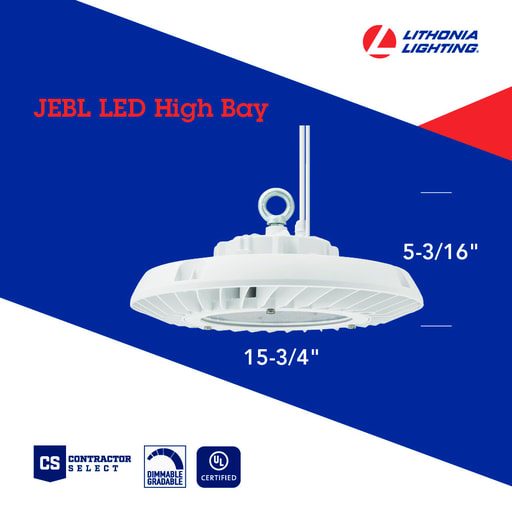

5-3/16 Inch

Length:

15-3/4 Inch

Lens Color:

White

Lumens:

24,000 Lumen

Material:

Aluminum

Mounting Type:

Pendant, Suspended

Shape:

Round

Sub Brand:

Contractor Select

Type:

High Bay

Voltage:

120 Volt

Wattage:

185 Watt

Widths:

15-3/4 in dia

SoneparProductId:

SKU_US_31247675

The JEBL LED high bay by Lithonia Lighting makes maintaining your lighting more affordable with a unique round design of the die-cast aluminum housing that is extremely versatile and highly durable Features: TECHNOLOGY: JEBL features a white die-cast aluminum housing along with a removable die-cast aluminum driver housing. Powder coat corrosion resistant finish provides 500 hours salt fog rating.; ENERGY SAVINGS: Easily replace 4-lamp T5HO, 6-lamp T8 with LEDs that save energy and reduce total cost of ownership; DIMMING: 0-10V dimming standard for a dimming range of 100 to 10 percent; RATINGS: CSA listed to US and Canadian Safety Standards; Wet location listed; VOLTAGE: Input voltage is MVOLT (120-277V) and HVOLT (347-480V); HOURS OF LIFE: L90 > 54,000 hours; INSTALLATION: Install 1/4 in. NPT eye bolt with 1/2 in. thick loop and 6 ft. cord with dimming lead provided for easy installation and optional surface mount brackets; BATTERY: Field-installable LED emergency driver sold separately; WARRANTY: 5-year limited warranty; DIMENSIONS: diameter 13 in. x depth 5 in. - Standards: cUL; ULDLC Premium; DLC Standard - Applications: Manufacturing; Warehouses
