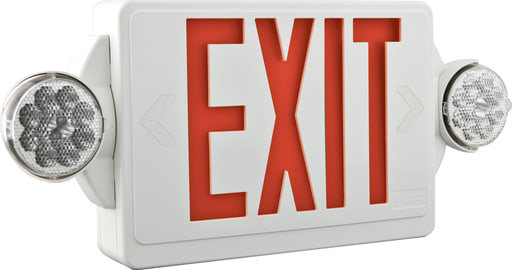

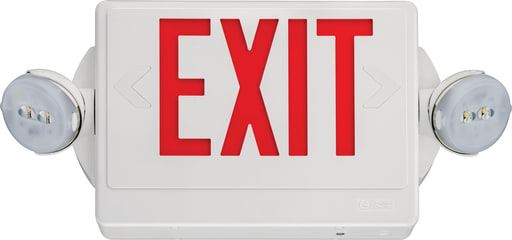

Lithonia Lighting - Lithonia LHQM-LED-R-M6 Stencil Face LED Exit Sign, Single Face, 2-Lamp Heads, 120/277V, White Thermoplastic Housing, Red Lettering

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 745976254438

  • Applications - Education,Government,Healthcare,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Retail,Sports And Recreation

  • Catalog Number - LHQM-LED-R-M6

  • Color - White

  • Color Rendering Index - 75

Packaging

  • 1 ea

EAN

00745976254438

Part #

145854

Catalog #

LHQMLEDR

Commercial reference

LHQMLEDR

12-Digit UPC:

745976254438

Applications:

Education,Government,Healthcare,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Retail,Sports And Recreation

Catalog Number:

LHQM-LED-R-M6

Color:

White

Color Rendering Index:

75

Color Temperature:

4600 K

Construction:

New Construction,Remodel

Country of Origin:

China,China

ERP_productname:

LITH LHQMLEDRM6 LED EMERG EXIT

Environment:

Indoor,Outdoor

Family Brand Name:

Lithonia Lighting

Finish:

Matte

Fixture Type:

Emergency Exit Unit (aka Combo)

Heights:

8 Inch

Length:

19-1/4 Inch

Lens Color:

Clear

Lumens:

160 Lumen

Material:

Thermoplastic

Mounting Type:

Surface

Product Type:

Emergency Exit Sign

Shape:

Square

Sub Brand:

Contractor Select

Type:

Emergency Exit Sign

Voltage:

120 Volt

Wattage:

3 Watt

Widths:

2.25 in

SoneparProductId:

SKU_US_585743693

The Contractor Select Quantum LHQM emergency light and exit combination unit from Lithonia Lighting with improved aesthetics and performance, is easy to install and maintain. The advanced optical design and electronic technology deliver high-quality light output when it is needed most. Mounting: Surface - Features: APPLICATIONS: Suitable for commercial indoor applications requiring both exit sign and unit equipment, Ideal for lower mounting heights and is great for above-the-door applications and other tight fits; RATINGS: UL Listed, meets all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC) and OSHA, UL Damp Location 50 to 104 degrees F (10-40C) listed; VOLTAGE: Functions between 120 or 277 volts (60 Hz) with input wattage of 3 watts; HOURS OF LIFE: The typical life of the LED lamp is 10 years using one 1.5 Watt LED per lamp head; DESIGN: Engineering-grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion proof, UL94V-0 flame rating, UV-stable resin resists discoloration from natural and man-made light sources; BATTERY: Emergency combo provided with test switch, status indicator and rechargeable battery with maintenance-free 9.6V nickel-cadmium battery provides 90 minutes of emergency power; WARRANTY: Buy with confidence with a 5-year limited warranty - Application: Education; Government; Healthcare; Hospitality; House of Worship; Offices & Banks; Retail; Sports and Recreation - Standard: NFPA 101; NFPA 70; ULCA Title 20; FCC 47CFR Part 15 Consumer
