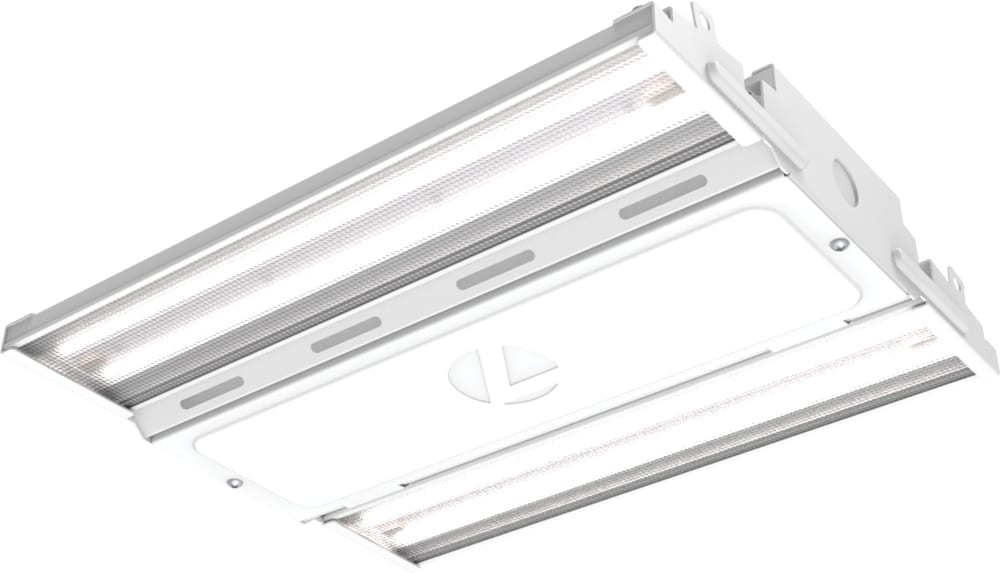

Lithonia Lighting - Lithonia Lighting CPHB-ALO13-MVOLT-SWW9-80CRI-DWH Compact Pro™ 14" Contractor LED High Bay Fixture, 120-277V, 12000/15000/18000 Lumens, 4000K/5000K, White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 196183428561

  • Applications - Common Areas,Education,Government,Manufacturing,Offices & Banks,Retail,Retrofit,Warehouses

  • Catalog Number - CPHB-ALO13-MVOLT-SWW9-80CRI-DWH

  • Color - White

  • Color Rendering Index - 80

Packaging

  • 1 ea

EAN

00196183428561

Part #

267028

Catalog #

CPHBALO13MVOLTSWW980CRIDWH

Commercial reference

CPHBALO13MVOLTSWW980CRIDWH

12-Digit UPC:

196183428561

Applications:

Common Areas,Education,Government,Manufacturing,Offices & Banks,Retail,Retrofit,Warehouses

Catalog Number:

CPHB-ALO13-MVOLT-SWW9-80CRI-DWH

Color:

White

Color Rendering Index:

80

Construction:

New Construction,Remodel

ERP_productname:

LITH CPHB-ALO13-MVOLT-SWW9-80CRI- DWH LED HIGHBAY FIXTURE 12000LM-15000LM-18000LM 40K/50K

Environment:

Indoor

Family Brand Name:

Lithonia Lighting

Finish:

Gloss

Heights:

2.4 Inch

Length:

14.4 Inch

Lens Color:

Clear

Lumens:

Switchable Lumen

Mounting Type:

Pendant,Surface,Suspended

Shape:

Rectangle

Type:

High Bay

Voltage:

120 Volt

Wattage:

138 Watt

Widths:

11.5 in

SoneparProductId:

SKU_US_353627477

Compact Pro High Bay, LED, Switchable Lumens- 12000LM, 15000LM and 18000LM, 120V-277V, Switchable CCT- 4000K and 5000K, 80 color rendering index, White Features: TECHNOLOGY: Adjustable Lumen Output (ALO) and Switchable White (SWW) features allow for this panel to offer 12 configurations in 2 SKUs; ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life; DIMMING: Thermally protected driver standard with 0-10V dimming; RATINGS: CSA listed, Damp location listed, DLC 5.1 qualified, designed for ambient temperature ranging -40±C to 55±C; VOLTAGE: Standard MVOLT for 120-277 volts; HOURS OF LIFE: 70% lumen maintenance at > 100,000 hours; INSTALLATION: Includes V-hanger hardware brackets and 2-36. chain lengths; also suitable for mounting by chain, cable, surface-mount bracket, or hook monopoint; BATTERY: Emergency battery pack available, sold separately; WARRANTY: 5-year limited warranty; DIMENSIONS: (l x w x h) 14 in. x 11.5 in. x 2.4 in. - Applications: Common Areas; Education; Government; Manufacturing; Offices & Banks; Retail; Retrofit; Warehouses - Standards: CSADLC Premium
