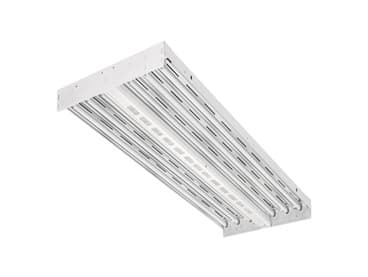

Lithonia Lighting - Lithonia Lighting IBZT5 6 6-Lamp 54 W 120 to 277 Volt T5 Fluorescent High Bay Light Fixture

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 745977147432

  • Applications - Education,Hospitality,Manufacturing,Offices & Banks,Retail,Sports And Recreation,Transportation,Warehouses

  • Catalog Number - IBZT56

  • Color - White

  • ERP_productname - LITH IBZT56 CONTRACTOR SELECT FLUORESCENT HIGH BAY - T5HO, SIX LAMPS

Packaging

  • 1 ea

EAN

00745977147432

Part #

195125

Catalog #

IBZT56

Commercial reference

IBZT56

12-Digit UPC:

745977147432

Applications:

Education,Hospitality,Manufacturing,Offices & Banks,Retail,Sports And Recreation,Transportation,Warehouses

Catalog Number:

IBZT56

Color:

White

ERP_productname:

LITH IBZT56 CONTRACTOR SELECT FLUORESCENT HIGH BAY - T5HO, SIX LAMPS

Family Brand Name:

Lithonia Lighting

Finish:

Gloss

Heights:

2-3/8 Inch

Length:

48.062 Inch

Material:

Steel

Mounting Type:

Suspended

Shape:

Rectangle

Type:

High Bay

Widths:

18.125 in

SoneparProductId:

SKU_US_25652021

Contractor Select Fluorescent High Bay - T5HO, Six lamps, SKU - 200R3K Features: TECHNOLOGY: With IBZ fixtures, the reflectors tightly control the distribution of light and effectively manage lamp heat to increase the overall efficiency; ENERGY SAVINGS: Designed to use 6 T5 fluorescent lamps; DIMMING: Not a dimmable ballast; RATINGS: CSA Certified to U.S. and Canadian safety standards (UL1598 and CSA 250.0-08 for 25C ambient operation). Suitable for damp locations; VOLTAGE: MVOLT 120-277V ballast accommodates most electrical requirements; HOURS OF LIFE: Based on the lamp used with the fixture; INSTALLATION: Suitable for suspension by chain, cable or hook monopointhanger; BATTERY: Emergency battery back-up not included in this version; WARRANTY: Buy with confidence with a 5-year limited warranty; DIMENSIONS: length 48.125-in x width 13.25-in x depth2.375-in and weight 15 lbs; INTENDED USE . The I-BEAM fluorescent high bay is an ideal one-for-one replacement of common metal halide high bay systems; Applications include manufacturing, warehousing, commericial facilities and retail; Thefluorescent I-BEAM fixture performs at mounting heights from 15'-40'; Certain airborne contaminants can diminish integrity of acrylic; Click here for Acrylic Environmental Compatibility table for suitable uses - Applications: Education; Hospitality; Manufacturing; Offices & Banks; Retail; Sports and Recreation; Transportation; Warehouses - Standards: CSA; UL
