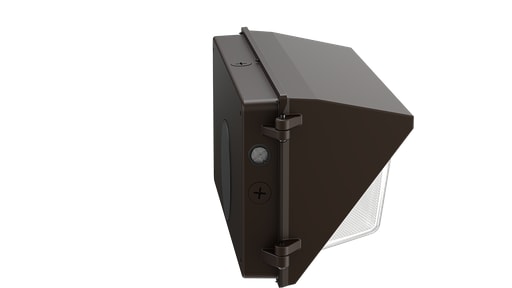

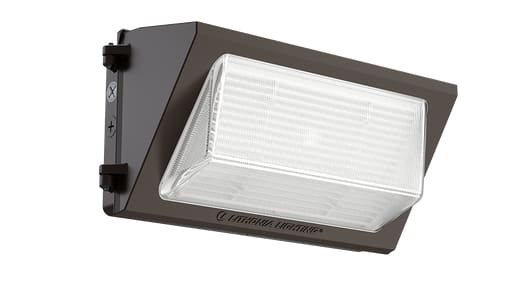

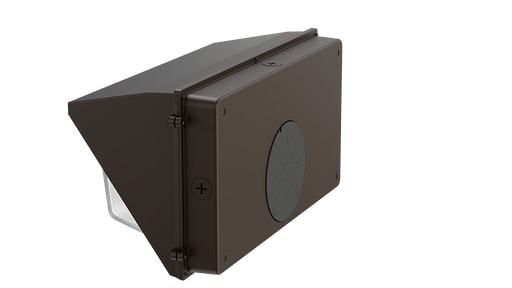

Lithonia Lighting - Lithonia TWR2-LED-ALO-SWW2-UVOLT-PE-DDBTXD LED Wall Pack, 8200-16100 Lumens, 120-347V, Dusk to Dawn Photocell

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 196183390028

  • Applications - Education,Hospitality,Offices & Banks

  • Catalog Number - TWR2LEDALOSWW2UVOLTPEDDBTXD

  • Color - Bronze

  • Color Rendering Index - 80

Packaging

  • 1 ea

EAN

00196183390028

Part #

269119

Catalog #

TWR2LEDALOSWW2UVOLTPEDDBTXD

Commercial reference

TWR2LEDALOSWW2UVOLTPEDDBTXD

12-Digit UPC:

196183390028

Applications:

Education,Hospitality,Offices & Banks

Catalog Number:

TWR2LEDALOSWW2UVOLTPEDDBTXD

Color:

Bronze

Color Rendering Index:

80

Color Temperature:

3000 K

Country of Origin:

Taiwan

ERP_productname:

LITH TWR2LEDALOSWW2UVOLTPEDDBTXD

Environment:

Outdoor

Family Brand Name:

Lithonia Lighting

Finish:

Textured

Heights:

9.2 Inch

Length:

7.9 Inch

Lumens:

8,200 Lumen

Material:

Aluminum

Mounting Type:

Surface

Product Type:

Wallpack

Shape:

Rectangle

Type:

Wallpack

Voltage:

120 Volt

Wattage:

112 Watt

Widths:

17.1 in

SoneparProductId:

SKU_US_353631361

TWR2V, LED, Adjustable light output, Switchable CCT- 3000K, 4000K, and 5000K, 120-347V, Photocell, buttontype, Textured dark bronze, super durable Application: Education; Hospitality; Offices & Banks - Features: DESIGN: The Lithonia Lighting® TWR2 LED Wall Pack is equipped with adjustable lumen output (up to 16,100 lumens), switchable CCT (30K/40K/50K), and a switchable photocell allowing the contractor to customize to a level perfectly suited for the job site; ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination and extended service life with energy savings of up to 86% when replacing HID wall packs; PHOTOCELL: Switchable photocell for dusk-to-dawn operation; RATINGS: UL Listed to U.S. and Canadian safety standards for wet locations, IP65 rated, DesignLights Consortium® (DLC) qualified product; VOLTAGE: UVOLT for 120-347V (50/60Hz); HOURS OF LIFE: LEDs maintain 90% of light output at 100,000 hours of service or L90/100,000 hours; INSTALLATION: Designed for wall mounting above four feet from ground. Housing is configured for mounting directly over a standard 4. outlet box (by others) or for surface wiring via any of four convenient 1/2. threaded conduit entry hubs; BATTERY BACKUP: Not available; WARRANTY: 5-year limited warranty - Mounting: Surface - Standard: C-UL-USDLC Premium; DLC Standard
