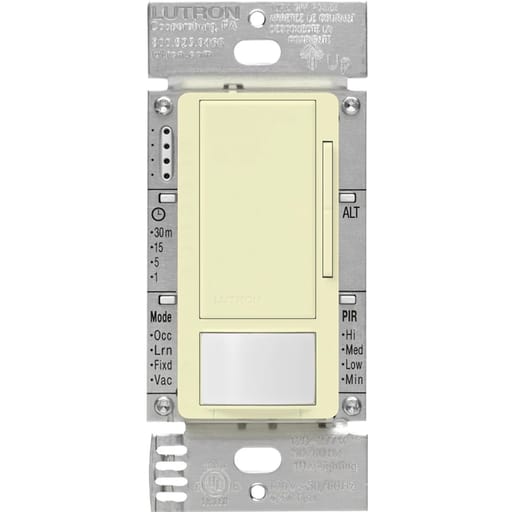

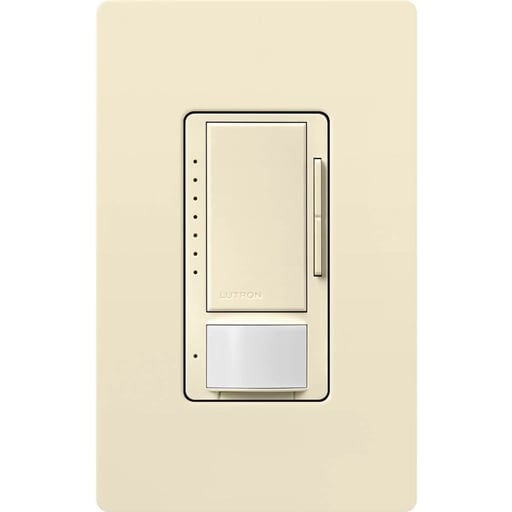

Lutron - LUT MS-Z101-AL 0-10V DIMMER SENSOR

The Lutron Maestro 0-10V Motion Sensor/Dimmer Switch works just like a Lutron Maestro dimmer with the addition of Lutron.s advanced motion sensing technology to automatically and gradually turn the lights on and off. The 0-10V Motion Sensor/Dimmer Switch is rated to work with all drivers that provide a current source, up to 8A switching LED drivers and 50mA max sink current. Install in a single pole, 3-way with existing switch, or with Maestro companion switches (MA-AS/MSC-AS) to switch from up to 9 locations. Use the raise/lower buttons to adjust the light level for any activity or set the preset level to ensure lights always turn on to your desired light level automatically. The passive infrared (PIR) sensor, covered by a tamper resistant lens, detects heat from occupants moving and has a 180-degree field of view (900 sq ft major motion & 400 sq ft minor motion coverage). Equipped with smart ambient light detection (ALD), you can customize your sensing dimmer to detect daylight, so lights don't turn on when enough natural light is present in the room. Unlike other manufacturers, Lutron sensors use Cross Correlation Technology (XCT) to also detect fine motion, such as typing at a desk or reading a book . ensuring lights won.t turn off inadvertently when you.re still in the room. Easy to read programming buttons directly on the sensor allow for customization of both the dimmer and the sensor.s functions, such as timeout, occupied level and sensor mode. Lutron sensors have an adjustable timeout (1, 5, 15 or 30 minutes) to control how long the lights stay on after leaving the room. The occupied level is the brightness the sensor will turn on when motion is detected. Change the sensor to vacancy mode to meet Title 24 requirements: lights only turn on with a manual press of the tap switch but automatically turn off if the sensor no longer detects motion. Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately). Standards and Certifications: UL; TITLE20; TITLE24; cUL; Title 20/24 certified - Features: Includes (1) Maestro 0-10V Motion Sensor/Dimmer Switch; Gloss Finish; Rated for all drivers that provide a source current up to 8A switching LED driver/4.4A Fan (1/6 HP) with a 50mA max sink current; Neutral Optional; Screw Terminal and Wire-Lead Installation; 120V; Single Pole/Multi-location switching with Lutron Maestro Companion switches (MA-AS); Compatible with an existing 3-way switch; Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers; 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); Tamper-resistant lens; Customize both dimmer and sensor functions with easy to read programming buttons directly on dimmer sensor; Complies with Title 24 requirements for multi-level lighting control; Smart Ambient Light Detection (ALD) can be programmed so lights stay off if enough light is present in the room; Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately); Passive infrared sensors that automatically control the lights in an area; These sensors detect heat from occupants moving within an area to deterine when the space is occupied; Combines a Maestro 0-10 V dimmer with an occupancy sensor; Controls 1-10 VDC electronic fluorescent ballast or LED driver load types; Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection; 180 degree sensor field-of-view; Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage; Can be set to auto-on/auto-off or manual-on/auto-off; Adjustable timeout (1, 3, 5, 15, or 30 minutes); Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level; Adjustable sensitivity level: High, med, low, min; Off warning fades lights to off over a period of 10 seconds; Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.); Adaptive switching algorithm for extended relay life; Smart ambient light detection (ALD); Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches; High-end trim and low-end trim to adjust maximum and minimum light levels; Selectable dimming curve-linear or square law; Miswire and incompatible load alert - Related Products: MS-OPS6M2-DV-AL; MA-PRO-AL; MS-OPS5M-AL; PD-10NXD-WH; MA-AS-AL; DVSTV-AL; CW-1-AL; MSCL-OP153M-AL; GRX-TVI; ST-PRO-N-WH
