Lutron - Lutron DVSTV-WH Diva 0-10V Control for LED Driver & Fluorescent Ballast, 1Pole/3Way, 120/277V - White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 784276099622

  • Actuator - Paddle Switch

  • Amperage - 8 Amp

  • Applications - For 0 - 10 V LED or Fluorescent Lighting Control

  • Catalog Number - DVSTV-WH

Packaging

  • 1 ea

EAN

00784276099622

Part #

181439

Catalog #

DVSTVWH

Commercial reference

DVSTVWH

12-Digit UPC:

784276099622

Actuator:

Paddle Switch

Amperage:

8 Amp

Applications:

For 0 - 10 V LED or Fluorescent Lighting Control

Catalog Number:

DVSTV-WH

Color:

White

Country of Origin:

Mexico

ERP_productname:

LUT DVSTVWH 0-10V DIVA 8A DIMMER WHITE

Enclosure:

Plastic

Enclosure Material:

Plastic

Family Brand Name:

Lutron Electronics Company

Finish:

Gloss

Material:

Plastic

Mounting Type:

Wallbox

Number of Poles:

1 Pole

Size:

75 in

Sub Brand:

Diva

Tc Connection:

Wire Leads

Type:

3 Way, Paddle

Voltage:

120-277 Volt

Wattage:

2216 Watt

SoneparProductId:

SKU_US_25331327

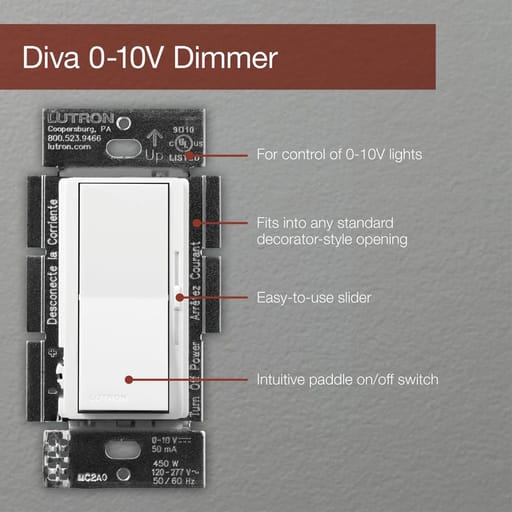

Diva Dimmer - Gloss Finish, Fluorescent or LED Dimming with 0-10V Ballasts and Drivers, Single-pole/3-way, 120-277V/50mA/8A in white Features: For use in controlling 0-10-Volt LED drivers and/or fluorescent ballasts; No neutral wire or power pack required; Large paddle switch with a captive linear-slide control for a standard designer-opening wall plate; Can be used in single pole or 3-way applications; Easily replaces existing switch and installs in as little as 15 minutes (no neutral wire required); Includes (1) Diva 0-10V dimmer switch; coordinating wallplate sold separately; Controls 0-10 V LED or fluorescent fixture loads, 50 mA max control current; Paddle turns on/off; Slide up to brighten, down to dim. - Standards and Certifications: CULUS; NOM; UL; CSA - Related Products: CA-4PS-WH; DVFSQ-LFH-WH; DVCL-153P-WH-2; DVWCL-153PH-WH; DVFSQ-F-WH; CW-1-WH; CW-2-WH; DVLV-600PH-WH; CW-3-WH; DVELV-303P-WH
