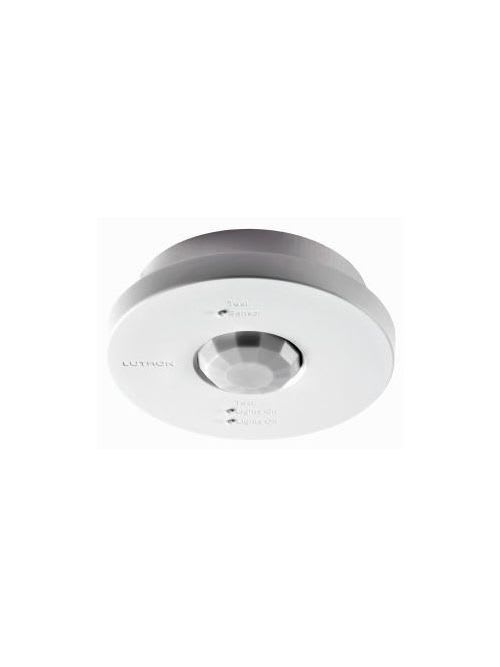

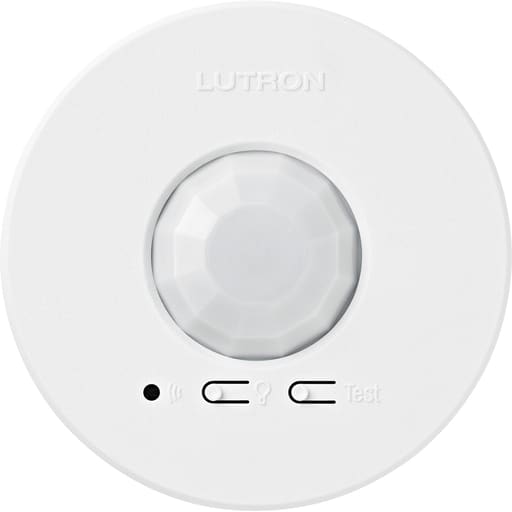

Lutron - Lutron LRF2-OCR2B-P-WH Wireless Occupancy/Vacancy Ceiling Sensor - White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 027557831970

  • Amperage - 0.014 mA

  • Applications - For Lighting Control

  • Catalog Number - LRF2-OCR2B-P-WH

  • Color - White, Matte

Packaging

  • 1 ea

EAN

00027557831970

Part #

108709

Catalog #

LRF2-OCR2B-P-WH

Commercial reference

LRF2-OCR2B-P-WH

12-Digit UPC:

027557831970

Amperage:

0.014 mA

Applications:

For Lighting Control

Catalog Number:

LRF2-OCR2B-P-WH

Color:

White, Matte

Country of Origin:

Mexico

ERP_productname:

LUT LRF2-OCR2B-P-WH LUTRON OCCUPANCY SENSOR

Enclosure:

Plastic

Enclosure Material:

Plastic

Family Brand Name:

Lutron Electronics Company

Material:

Plastic

Mounting Type:

Ceiling/Surface

Sensing Range:

324 ft2 (30.2 m2) to 676 ft2 (62.4 m2), 360 degree field of view

Sensor Type:

Passive Infrared

Sub Brand:

Radio Powr Savr™

Type:

Wireless, Indoor

Voltage:

3 VDC

SoneparProductId:

SKU_US_25474191

Radio Powr Savr Wireless Occupancy/Vacancy Sensor, Ceiling-mount, 434 MHz, White finish Features: Battery-powered passive infrared (PIR) sensor that automatically controls lights via RF communication to compatible dimming and switching devices; This sensor detects the heat from people moving within an area to determine when the space is occupied; The sensor then wirelessly transmits the appropriate commands to the associated dimming and switching devices to turn the lights on or off automatically; Combines both convenience and exceptional energy savings potential along with ease of installation; Has 3 settings available: auto-on/auto-off, auto-on low-light/auto-off, and manual-on/auto-off; Auto-on low-light feature will turn lights on automatically only if there is less than approximately 10 Lux (1 fc) of ambient light; Uses Clear Connect technology; PIR motion detection with exclusive Lutron XCT Technology for fine motion detection; 360 degree coverage from 324 ft2 (30.2 m2) to 676 ft2 (62.4 m2), depending on mounting height; Simple and intuitive adjustments available for timeout, auto-on, and activity settings; Supports advanced occupancy features such as dependent occupancy groups and customizable occupied/unoccupied presets in some systems; Multiple sensors can be added for extended coverage; Lens illuminates during test mode to verify ideal locations; Multiple ceiling-mount methods available for different ceiling materials; Front accessible test buttons make programming easy; 10-year battery life design. - Standards and Certifications: ISO; CULUS; IC; COFETEL; ANATEL; SUTEL; FCC; cUL
