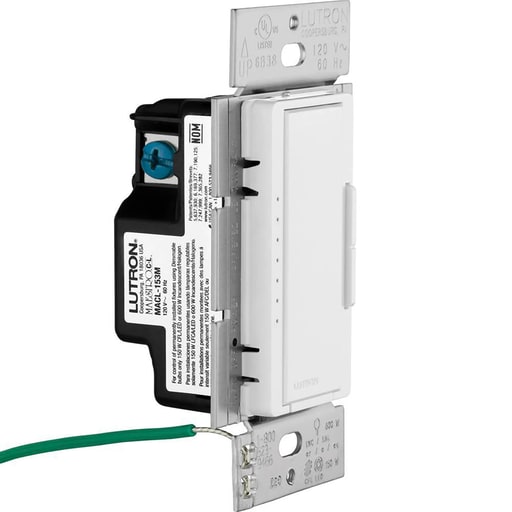

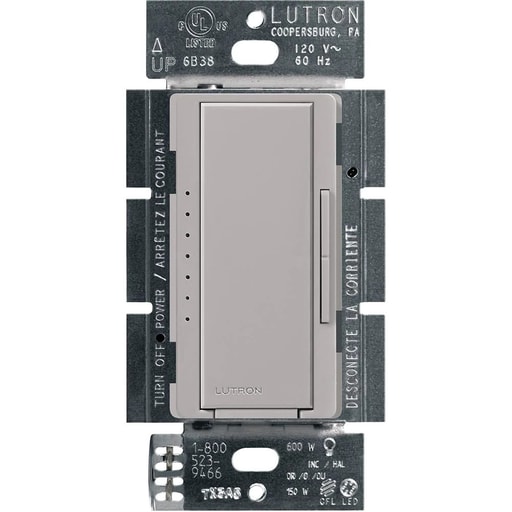

Lutron - Lutron MACL-153M-GR MAESTRO LED+ MULTI

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 784276010702

  • Actuator - Tapswitch

  • Applications - For Dimmable LED/CFL (Screw Base), Incandescent or Halogen Lighting Control

  • Catalog Number - MACL-153M-GR

  • Color - Gray

Packaging

  • 1 ea

EAN

00784276010702

Part #

109762

Catalog #

MACL-153-M-GR

Commercial reference

MACL-153-M-GR

12-Digit UPC:

784276010702

Actuator:

Tapswitch

Applications:

For Dimmable LED/CFL (Screw Base), Incandescent or Halogen Lighting Control

Catalog Number:

MACL-153M-GR

Color:

Gray

Country of Origin:

China

ERP_productname:

LUT MACL-153-M-GR

Enclosure:

Plastic

Enclosure Material:

Plastic

Family Brand Name:

Lutron Electronics Company

Finish:

Gloss

Material:

Metal

Mounting Type:

Wallbox

Number of Poles:

1 Pole

Size:

75 in

Sub Brand:

Maestro

Tc Connection:

Screw terminals

Type:

Multi-Location, 3 Way, Digital Fade, Tapswitch

Voltage:

120 Volt

Wattage:

600 Watt

SoneparProductId:

SKU_US_29231284

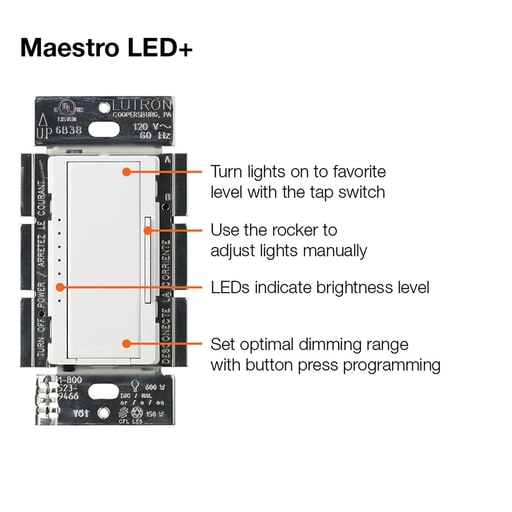

Controls dimmable 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads. Provides true dimming from each location (with companion dimmers). Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents. Features: Tested on 1,000s of bulbs and dozens of brands for flicker-free dimming.; Provides over 250 lighting levels so you can create the perfect light for any activity; Works with up to 150 Watts of dimmable LED/CFL bulbs or 600 Watts of Incandescent/Halogen bulbs; Lutron patented technology to optimize the dim range of your bulb and prevent interference with other dimmers in the home; Can be used in single-pole or 3-Way/multi-location dimming applications (up to 10 locations, Maestro companion dimmer MA-RR-XX required); Easy-to-operate tap switch turns lights on/off to favorite light level. Rocker dims and brightens. Advanced programming settings for features such as customizable delayed-fade-to off; Installs in as little as 15 minutes in homes of all ages . NO NEUTRAL REQUIRED; Includes (1) Maestro LED+ (formerly C.L) dimmer switch; coordinating wallplate sold separately; Capable of controlling up to 150 W Dimmable CFL / LED or 600 W Incandescent / Halogen or Mixed bulb type per Multigang and Mixed Bulb Type Ratings table; 100% factory tested; Controls dimmable 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads; Provides true dimming from each location (with companion dimmers); Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents. - Standards and Certifications: UL; CSA; NOM - Related Products: MA-T51MN-GR; CW-1-GR; MS-OPS2-GR; MA-T51-GR; CW-2-GR; MA-AS-GR; CW-3-GR; MSCL-OP153M-GR; PD-6WCL-WH; MA-S8AM-GR
