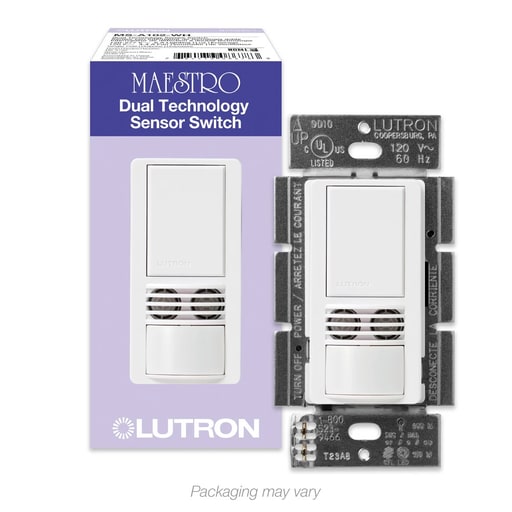

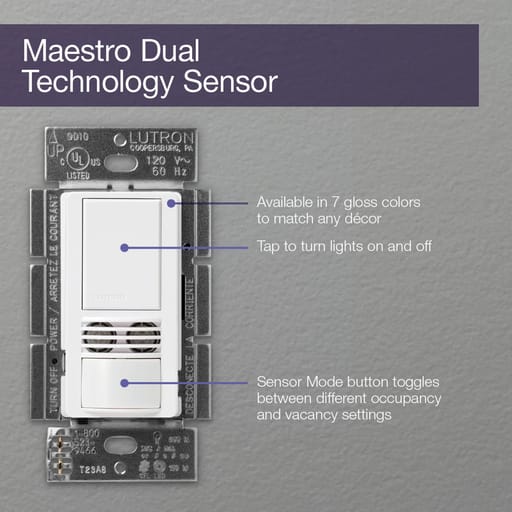

Maestro Dual Technology (Dual Tech) occupancy sensor switch, applies exclusive XCT Technology for minor and fine motion detection in white Features: Includes (1) Lutron Maestro Dual-Tech Motion 6A Sensor Switch; Gloss Finish; Single Pole Only; Rated to work with a single circuit up to 6A lighting, 4.4A (1/6HP) fans motors, or 4.4A combined fan/light; Ground or Neutral required; 120-277V; 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); tamper resistant lens; Lutron Dual Sensing Technology: Ultrasonic and PIR (Passive-Infrared) for major, minor, fine and very fine motion detection; Smart Ambient Light Detection (ALD) can be programmed so lights stay off if enough light is present in the room; Adaptive zero-cross switching algorithm for extended relay life; Easy to read programming buttons directly on sensor; Complies with Title 20/24, ASHRAE 90.1, and IECC code requirements such as .automatic shutoff.; Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately); Applies Lutron's exclusive XCT Technology (Dual Tech) to the ultrasonic as well as the passive infrared technology in this sensor to create a product that can detect very fine motion, such as typing; Includes all of the great features found in the rest of the Maestro sensor family, including: adaptive relay switching, smart ambient light detection, and simple button presses for changing settings; XCT technology for major, minor, fine, and very fine motion detection; 180 degree field-of-view; Tamper-resistant PIR lens; Up to 900 ft2 (81 m2) major motion coverage and 400 ft2 (36 m2) minor motion coverage; Two ambient light detect (ALD) options: Learning ALD mode: uses adaptive algorithm; Sensor learns user's preferred light level over time; Fixed ALD mode: four selectable light level thresholds: Hi, Med, Low, Min; Can be set to auto-on/auto-off or manual-on/auto-off per circuit; Adjustable timeout for each circuit (1, 5, 15, or 30 minutes); Sensitivity adjustment: PIR (Hi, Med, Min), ultrasonic (Hi, Med, Low, Off); Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent; Switches fan loads at 120 V; Does not require neutral wiring. - Standards and Certifications: UL; NOM; TITLE20; TITLE24; Title 20/24 certified - Related Products: MACL-153MH-WH; MACL-153M-RHW-WH; MS-OPS2-WH-2; MA-AS-WH; MA-L3T251HW-WH; CW-1-WH; CW-2-WH; MS-OPS2H-WH; CW-3-WH; MS-OPS6-DDV-WH
