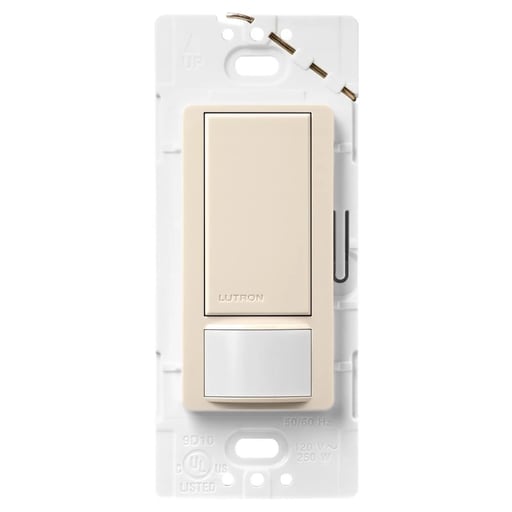

Lutron - Lutron MS-OPS2-LA MAESTRO Occupancy/Vacancy Sensing Switch, Single-Pole, 120V - Light Almond

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 027557982689

  • Amperage - 2 Amp

  • Applications - Lighting Control

  • Catalog Number - MS-OPS2-LA

  • Color - Almond

Packaging

  • 1 ea

EAN

00027557982689

Part #

190879

Catalog #

MS-OPS2-LA

Commercial reference

MS-OPS2-LA

12-Digit UPC:

027557982689

Amperage:

2 Amp

Applications:

Lighting Control

Catalog Number:

MS-OPS2-LA

Color:

Almond

Country of Origin:

China

ERP_productname:

LUT MS-OPS2-LA MAESTRO PIR OCC 2A SWITCH

Enclosure:

Plastic

Enclosure Material:

Plastic

Family Brand Name:

Lutron Electronics Company

Finish:

Gloss

Mounting Type:

Wallbox

Sensing Range:

900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage

Sub Brand:

Maestro

Type:

Single Circuit

Voltage:

120 Volt

SoneparProductId:

SKU_US_25580194

Maestro Occupancy-Sensing Switch, Single-pole, 120V/2A in light almond Standards and Certifications: UL; CUL; NOM; cUL - Features: Includes (1) Lutron Maestro 2A Motion Sensor Switch; Gloss Finish; Rated to work with up to 2A lighting; 120V; Single Pole only; Wire-Lead installation; Ground or Neutral Required; Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers; 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); Tamper-resistant lens; Smart Ambient Light Detection (ALD) can be programmed so lights stay off if enough natural light is present in the room; Easy button programming to customize timeout, sensor mode, or sensitivity; Complies with Title 20/24 Section 110.9 for .automatic shutoff.; Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately); Combines a Maestro switch with a passive infrared occupancy sensor; Detects the heat from occupants moving within an area to determine whether the space is occupied; Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly; Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection; 180 degree sensor field-of-view; Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage; Can be set to auto-on/auto-off or manual-on/auto-off; Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment; Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan; Ground wire required. - Related Products: MA-R-LA; MA-AS-LA; MS-Z101-LA; MS-OPS5M-LA; PD-6ANS-WH; MS-VPS2-LA; MRF2S-8S-DV-LA; MSCL-OP153M-LA; LRF2-OCR2B-P-WH; PD-OSENS-WH
