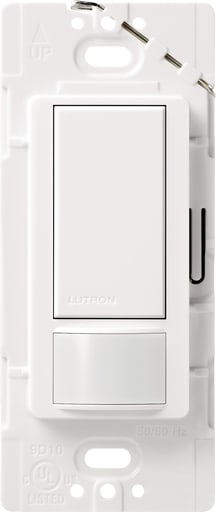

5A lighting, 3A fan, XCT PIR sensor, single pole/3-way/multi-location, 120-277V Features: Automatically turns the lights on when you enter the room and off when you leave; Features XCT sensing technology which detects fine motion, such as typing at a desk or reading, ensuring lights do not turn off inadvertently; Optional: senses daylight so lights do not turn on when there is enough natural light in the room; Programmable time-out of lights - 1, 5, 15 or 30 minutes; Works with all bulb types; up to 600W incandescent, halogen and electronic low-voltage, 450W magnetic low-voltage, 360W CFL/LED, 5 ballasts, 3A fans; Can be used in single-pole or multi-location applications; great for larger rooms like garages, bathrooms and private offices; Installs in as little as 15 minutes; no neutral required; Includes (1) maestro sensor switch; coordinating wallplate sold separately; Combines a Maestro switch with a passive infrared occupancy sensor; Detects the heat from occupants moving within an area to determine whether the space is occupied; Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly; Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection; 180 degree sensor field-of-view; Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage; Can be set to auto-on/auto-off or manual-on/auto-off; Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment; Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan; Ground wire required. - Standards and Certifications: UL; CUL; NOM; cUL - Related Products: MACL-153MH-WH; MACL-153M-RHW-WH; MSCL-OP153MH-WH; MS-OPS2H-WH; CW-2-WH; CW-3-WH; MA-L3T251HW-WH; CW-1-WH; MA-AS-WH; MS-OPS2-WH-2
