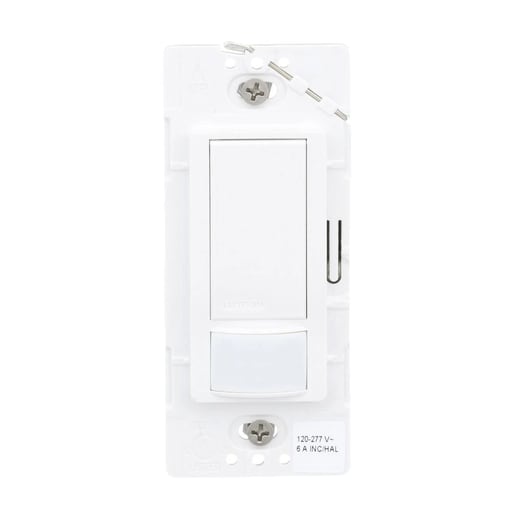

Maestro Occupancy-Sensing Switch, Multi-location/single-pole, no neutral wire required, 120/277V in white Features: Includes (1) Lutron Maestro 6A Motion Sensor Switch; Gloss Finish; Rated to work with up to 6A lighting, 3A Fan or 3A combined Light/Fan; 120-277V; Wire-Lead installation; Ground or Neutral Required; Single Pole or Multi-Location with Lutron Maestro Companion Switch (MA-AS/MSC-AS); Compatible with one existing 3-way switch; Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers; 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); Tamper-resistant lens; Smart Ambient Light Detection (ALD) can be programmed so lights stay off if enough natural light is present in the room; Easy button programming to customize timeout, sensor mode, or sensitivity; Complies with Title 20/24 Section 110.9 for .automatic shutoff.; Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately); Combines a Maestro switch with a passive infrared occupancy sensor; Detects the heat from occupants moving within an area to determine whether the space is occupied; Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly; Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection; 180 degree sensor field-of-view; Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage; Can be set to auto-on/auto-off or manual-on/auto-off; Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment; Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan; Ground wire required. - Standards and Certifications: UL; CUL; NOM; cUL - Related Products: MS-VPS2-WH; MS-OPS5M-WH; MS-VPS5M-WH; PD-OSENS-WH; PD-6ANS-WH; MRF2S-8S-DV-WH; MA-AS-WH; MSCL-OP153M-WH; MA-R-WH; MS-Z101-WH
