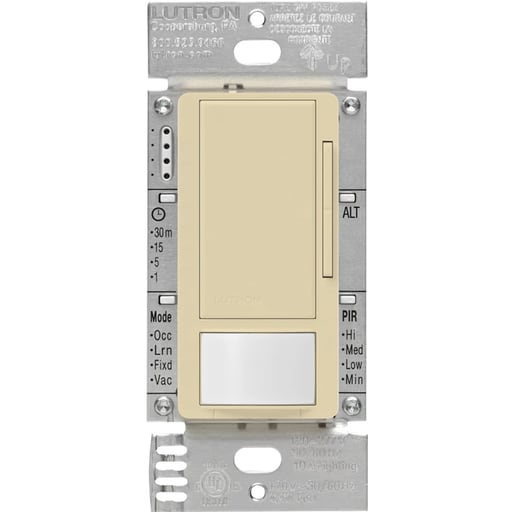

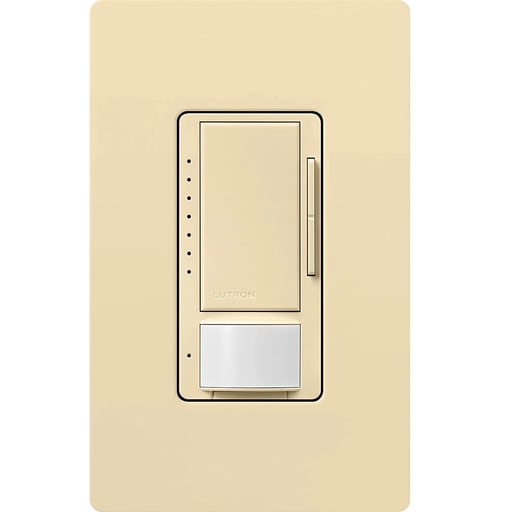

Lutron - Lutron MS-Z101-V-IV 8 Amp 120 to 277 VAC Ivory 1-Pole/Multi-Location 0-10V Vacancy Sensor Switch Dimmer

Passive infrared sensors that automatically control the lights in an area. These sensors detect heat from occupants moving within an area to determine when the space is occupied. Combines a Maestro 0-10 V dimmer with an vacancy sensor. Controls 1-10 VDC electronic fluorescent ballast or LED driver load types. Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Adjustable timeout (1, 3, 5, 15, or 30 minutes). Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level. Adjustable sensitivity level: High, med, low, min. Off warning fades lights to off over a period of 10 seconds. Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.). Adaptive switching algorithm for extended relay life. Smart ambient light detection (ALD). Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches. High-end trim and low-end trim to adjust maximum and minimum light levels. Selectable dimming curve-linear or square law. Miswire and incompatible load alert Features: Includes (1) Maestro 0-10V Motion Sensor/Dimmer Switch, Vacancy Only; Gloss Finish; Rated for all drivers that provide a source current up to 8A switching LED driver/4.4A Fan (1/6 HP) with a 50mA max sink current; Neutral Optional; Screw Terminal and Wire-Lead Installation; 120V; Single Pole/Multi-location switching with Lutron Maestro Companion switches (MA-AS); Compatible with an existing 3-way switch; Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers; 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); Tamper-resistant lens; Customize both dimmer and sensor functions with easy to read programming buttons directly on dimmer sensor; Complies with Title 24 requirements for multi-level lighting control; Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately); Passive infrared sensors that automatically control the lights in an area; These sensors detect heat from occupants moving within an area to determine when the space is occupied; Combines a Maestro 0-10 V dimmer with an vacancy sensor; Controls 1-10 VDC electronic fluorescent ballast or LED driver load types; Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection; 180 degree sensor field-of-view; Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage; Adjustable timeout (1, 3, 5, 15, or 30 minutes); Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level; Adjustable sensitivity level: High, med, low, min; Off warning fades lights to off over a period of 10 seconds; Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.); Adaptive switching algorithm for extended relay life; Smart ambient light detection (ALD); Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches; High-end trim and low-end trim to adjust maximum and minimum light levels; Selectable dimming curve-linear or square law; Miswire and incompatible load alert - Standards and Certifications: UL; TITLE20; TITLE24; cUL; Title 20/24 certified - Related Products: MS-OPS6M2-DV-IV; DVSTV-IV; MS-OPS5M-IV; GRX-TVI; MA-PRO-IV; MSCL-OP153M-IV; PD-10NXD-IV; MA-AS-IV; CW-1-IV; ST-PRO-N-IV
