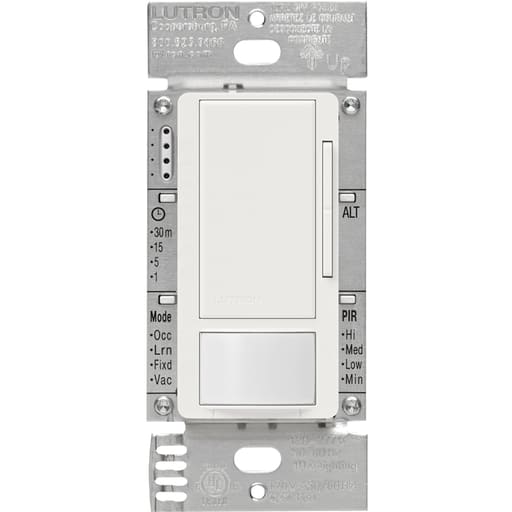

Lutron - Lutron MS-Z101-WH Maestro 0-10V Dimmer Sensor - White

Maestro 0-10V dimmer occupancy/vacancy sensor, passive infrared, 8A fluorescent ballast or LED driver, 120-277V, in white Features: Passive infrared sensors that automatically control the lights in an area; These sensors detect heat from occupants moving within an area to determine when the space is occupied; Combines a Maestro 0-10 V dimmer with an occupancy sensor; Controls 1-10 VDC electronic fluorescent ballast or LED driver load types; Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection; 180 degree sensor field-of-view; Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage; Can be set to auto-on/auto-off or manual-on/auto-off; Adjustable timeout (1, 3, 5, 15, or 30 minutes); Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level; Adjustable sensitivity level: High, med, low, min; Off warning fades lights to off over a period of 10 seconds; Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.); Adaptive switching algorithm for extended relay life; Smart ambient light detection (ALD); Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches; High-end trim and low-end trim to adjust maximum and minimum light levels; Selectable dimming curve-linear or square law; Miswire and incompatible load alert - Standards and Certifications: UL; TITLE20; TITLE24; cUL; Title 20/24 certified - Related Products: MS-OPS2-WH; MS-VPS2-WH; MS-OPS5M-WH; MS-VPS5M-WH; PD-OSENS-WH; PD-6ANS-WH; MRF2S-8S-DV-WH; MA-AS-WH; MSCL-OP153M-WH; MA-R-WH
