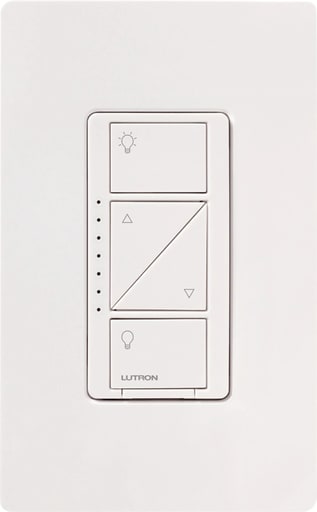

Lutron - Lutron PD-10NXD-WH 1000 W 120 Volt White 1-Pole/Multi-Location Dimmer

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 784276146128

  • Actuator - Push-button

  • Applications - Lighting

  • Catalog Number - PD-10NXD-WH

  • Color - White

Packaging

  • 1 ea

EAN

00784276146128

Part #

104427

Catalog #

PD-10NXD-WH

Commercial reference

PD-10NXD-WH

12-Digit UPC:

784276146128

Actuator:

Push-button

Applications:

Lighting

Catalog Number:

PD-10NXD-WH

Color:

White

Country of Origin:

China

ERP_productname:

LUT PD-10NXD-WH CASETA PRO 1000W DIMMER

Enclosure:

Plastic

Enclosure Material:

Plastic

Family Brand Name:

Caseta

Finish:

Gloss

Material:

Metal

Mounting Type:

Wallbox

Number of Poles:

1 Pole

Size:

75 in

Sub Brand:

Caseta Wireless

Tc Connection:

Wire Leads

Type:

Multi-location/3-way/single-pole,Wireless In-wall Dimmer

Voltage:

120 Volt

Wattage:

1000 Watt

SoneparProductId:

SKU_US_25354931

Caseta Wireless 3-way/single-pole RF dimmer for LED, CFL, Incandescent, Halogen, or Magnetic Low Voltage, 1000W/VA, neutral optional in white Features: Includes: One (1) Lutron Caseta in-wall dimmer switch PRO; Gloss finish; Works with up to 250W of dimmable LED or 1000W of MLV/Incandescent/Halogen; 120V; Neutral Optional for LED, CFL, and Incandescent/Halogen; Neutral Required for ELV, MLV, dimmable ballasts, and Hi-Lume 1% LED drivers, and Lutron power boosters; Dim from up to 10 locations by pairing the dimmer to a mountable Lutron Pico remote (PJ2-WALL-WH-L01 sold separately); Can be wired to existing 3-way switches (CA-3PS-XX); Add a Lutron Smart Hub to connect with Alexa, Apple Home, the Google Assistant, Ring, Serena Shades, SONOS, and more; Lutron Clear Connect does not rely on wi-fi and is ultra-fast and ultra-reliable (avoid repeat service calls); 60ft direct line-of-sight or 30ft through walls of a Lutron Smart Hub; Pair up to ten (10) Lutron Pico Remotes or Caseta motion sensors to one (1) Lutron Caseta dimmer switch (limitations reflect when no Lutron Smart Hub installed); Control at the wall, with a Pico smart remote, with a phone, or voice assistant (Lutron Smart Hub, L-BDG2-WH required for phone and voice assistant control); Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates sold separately); Controls 250 W LED (screw-base), 1000 W incandescent/halogen, 1000 VA (800 W) magnetic low-voltage, 520 W Hi-lume 1 percent 2-wire LED driver, or 5 A Tu-Wire fluorescent ballast loads; Simple, intuitive design with on, off and raise/lower buttons; Provides true dimming from each location with Pico wireless remotes; Offers reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents - Standards and Certifications: CULUS; NOM; FCC; cUL; IFTEL; NEMA - Related Products: DVRF-6L-WH; DVRF-5NS-WH; PD-6ANS-WH; PD-6WCL-WH; PD-15OUT-BL; L-BDG2-WH; PD-OSENS-WH; PD-3PCL-WH; PD-5WS-DV-WH; PD-5NE-WH
