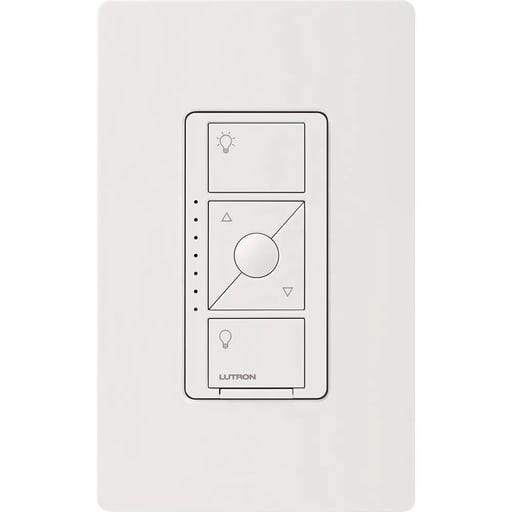

Lutron - Lutron PD-5NE-WH CASETA PHASE SELECTABLE IN WHITE

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 784276217699

  • Actuator - Push-button

  • Applications - Lighting

  • Catalog Number - PD-5NE-WH

  • Color - White

Packaging

  • 1 ea

EAN

00784276217699

Part #

216097

Catalog #

PD-5NE-WH

Commercial reference

PD-5NE-WH

12-Digit UPC:

784276217699

Actuator:

Push-button

Applications:

Lighting

Catalog Number:

PD-5NE-WH

Color:

White

Country of Origin:

Mexico

ERP_productname:

LUT PD-5NE-WH CASETA PHASE SELECTABLE

Enclosure:

Plastic

Enclosure Material:

Plastic

Family Brand Name:

Caseta

Finish:

Gloss

Material:

Metal

Mounting Type:

Wallbox

Number of Poles:

1 Pole

Size:

75 in

Sub Brand:

Caseta Wireless

Tc Connection:

Wire Leads

Type:

Multi-location/single-pole,Wireless In-wall Dimmer

Voltage:

120 Volt

Wattage:

500 Watt

SoneparProductId:

SKU_US_25324396

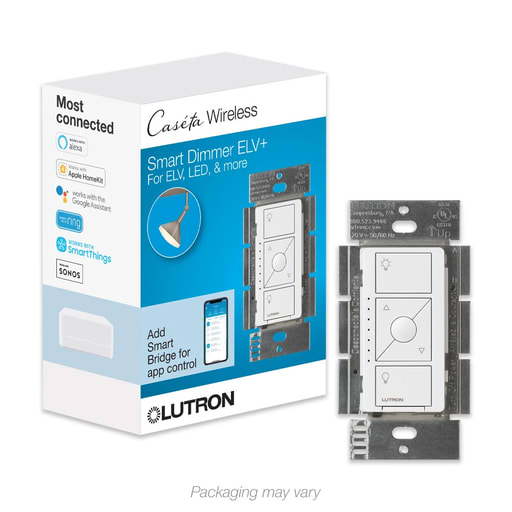

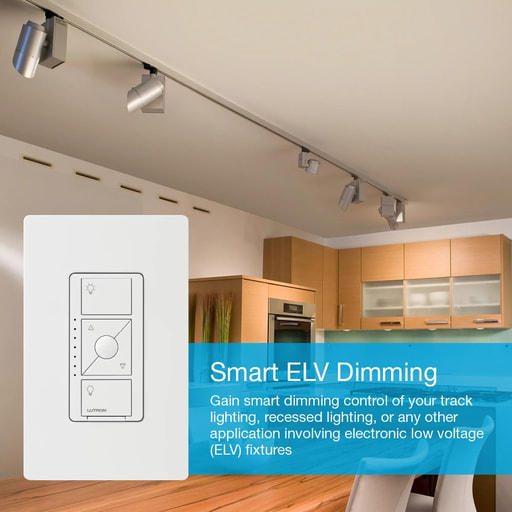

Caseta Wireless 3-way/single-pole RF dimmer for LED, ELV, MLV, or Halogen lights in white Features: Includes: One (1) Caseta Wireless ELV+ dimmer switch; Gloss finish; Works with up to 250W of dimmable LED, 500W of incandescent/halogen or ELV, or 400W MLV; Phase-Select available; Neutral Required; 120V; Create a 3-way and add a 2nd switch anywhere by pairing with a mountable Pico remote (PJ2-WALL-WH-L01 sold separately); Cannot be wired to existing 3-way switches; Add a Lutron Smart Hub to connect with Alexa, Apple Home, the Google Assistant, Ring, Serena Shades, SONOS, and more; Lutron Clear Connect does not rely on wi-fi and is ultra-fast and ultra-reliable (avoid repeat service calls); Preset button allows you to turn your lights on to your preferred predetermined level; Pair up to ten (10) Pico Remotes or Caseta motion sensors to one (1) Lutron Caseta dimmer switch (limitations reflect when no Lutron Smart Hub installed); Control at the wall, with a Pico smart remote, with a phone, or voice assistant (Lutron Smart Hub, L-BDG2-WH, required for phone and voice assistant control); Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately); Controls 250 W LED (screw-base), 500 W incandescent/halogen, 400 VA (300 W) magnetic low-voltage, 500 W electronic low-voltage, 400 W Hi-lume 1 percent 2-wire LED driver, or 3.3 A Tu-Wire fluorescent ballast loads; Simple, intuitive design with on, off and raise/lower buttons; Provides true dimming from each location with Pico wireless remotes. - Standards and Certifications: CULUS; NOM; FCC; UL; cUL; ICC; IFTEL - Related Products: CW-1-WH; CW-2-WH; CW-3-WH; L-BDG2-WH; PJ2-2B-GWH-L01; PICO-WBX-ADAPT; PD-5ANS-WH-R; PD-6ANS-WH; PJ2-3BRL-WH-L01R; PJ2-3BRL-GWH-A02
