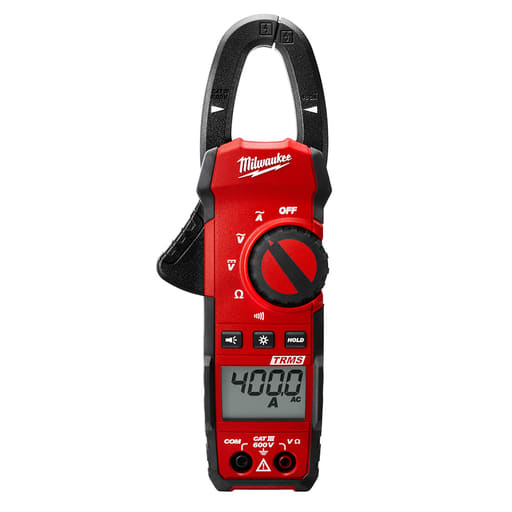

Milwaukee Tool - Milwaukee 2235-20 400 Amp Clamp Meter

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 045242236930

  • Applications - For Measuring Conductivity, Inductance, Temperature, True RMS

  • Catalog Number - 2235-20

  • Color - Black,Red

  • Depths - 10-1/2 Inch

Packaging

  • 1 ea

EAN

00045242236930

Part #

429258

Catalog #

2235-20

Commercial reference

2235-20

12-Digit UPC:

045242236930

Applications:

For Measuring Conductivity, Inductance, Temperature, True RMS

Catalog Number:

2235-20

Color:

Black,Red

Depths:

10-1/2 Inch

ERP_productname:

MILW 2235-20 400 AMP CLAMP METER

Family Brand Name:

Milwaukee Tool

Impedance:

Yes

Length:

7 Inch

Material:

Polycarbonate,Rubber

Type:

Automatically

SoneparProductId:

SKU_US_25581589

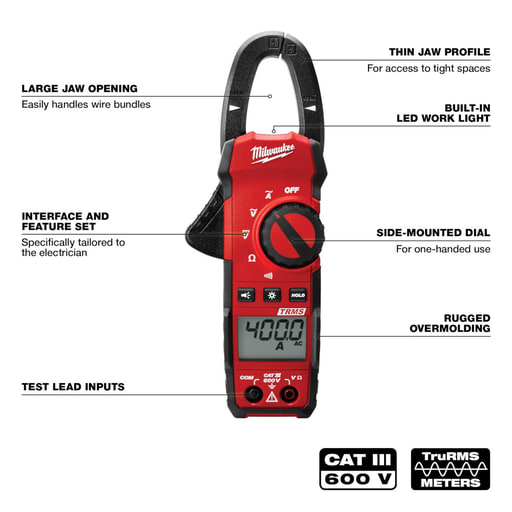

Heavy duty True-RMS electrical current tester for professional residential, commercial, and industrial applications. The perfect tool for the professional electrician; includes all the features that are needed to get the job done in the field, on-site or in the plant. Milwaukee 2235-20 clamp meter features: jaw size of 1.0 in. measuring up to 350 MCM cable; rated cat III 600 V; current measurement to 400 A AC; voltage measurement to 600 V AC/DC; LED work light to improve task lighting; resistance measurement to 4000 ohms; test for continuity; black on white display and backlight for easier reading; rugged over-molding for increased durability and user grip; includes one (1) electrical test lead set, two (2) AAA batteries, and manual; covered by 5 year warranty. Features: Measures up to 400 A AC, large 1.0 in. jaw opening; Thin jaw profile for easier wire measurement in panels or in bundles; Wide voltage range to 600 AC/DC volts; True-RMS for accurate measurement in all applications; Built-in LED work light; Cat III 600 V for increased safety; Black on white display with backlight for easier reading; Rugged over-molding increases durability and user grip - Prop 65: WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
