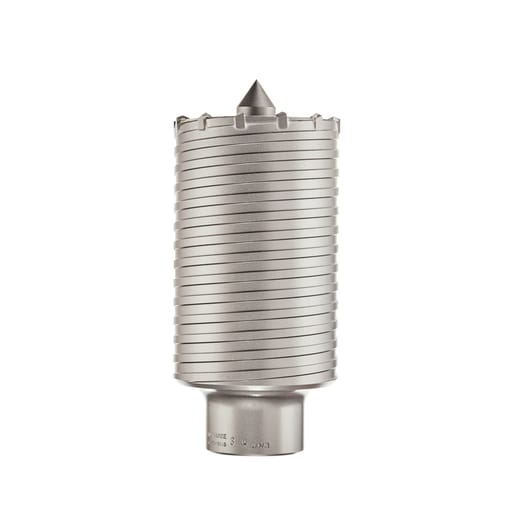

Milwaukee Tool - Milwaukee 48-20-5145 SDS-Max and Spline Thick Wall Carbide Tipped Core Bit 3"

Essential specifications

12-Digit UPC - 045242106059
Applications - For Large Hole Drilling where Depth is Relatively Shallow, use with Thick Wall Core Bit Shank 48-03-3564 (12 in) or 48-03-3565 (18 in)
Catalog Number - 48-20-5145
Depths - 4-1/16 Inch
ERP_productname - MILW 48-20-5145 3-INCH THICK WALL CORE BIT

Packaging

1 ea

EAN

00045242106059

Part #

429098

Catalog #

48-20-5145

Commercial reference

48-20-5145

12-Digit UPC:

045242106059

Applications:

For Large Hole Drilling where Depth is Relatively Shallow, use with Thick Wall Core Bit Shank 48-03-3564 (12 in) or 48-03-3565 (18 in)

Catalog Number:

48-20-5145

Depths:

4-1/16 Inch

ERP_productname:

MILW 48-20-5145 3-INCH THICK WALL CORE BIT

Family Brand Name:

Milwaukee Tool

Length:

6 Inch

Material:

Carbide

Size:

3 in

Sub Brand:

MILWAUKEE

Type:

Two Piece

SoneparProductId:

SKU_US_25205266

Milwaukee®'s SDS-Max and spline thick wall core bits are used for drilling large through holes into brick, block, concrete. Includes core bit, guide plate, and centering pin. Features: Thick wall design; 3 in. diameter; Usable cutting depth 4-1/16 in.; Use with 12 in. or 18 in. spline adapter shanks (48-03-3564, 48-03-3565) and 12 in. or 18 in. SDS-Max adapter shanks (48-03-3572, 48-03-3573); Use with 7-1/2 in. extension 48-95-6085; Use with guide plate 48-20-5170 and centering pin 48-20-5199; Includes core body with guide plate & centering pin
