NSi - NSI 1036MB 36 Crct Stked Neut C/W P
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 662381008190
Applications - Wire Termination
Buy American - Y
Catalog Number - 1036MB
Conductor Material - Aluminum
Packaging
1 ea
EAN
00662381008190
Part #
274712
Catalog #
1036MB
Commercial reference
1036MB
12-Digit UPC:
662381008190
Applications:
Wire Termination
Buy American:
Y
Catalog Number:
1036MB
Conductor Material:
Aluminum
Conductor Size:
6 AWG
Country of Origin:
USA
ERP_productname:
NSI 1036MB 36CKT NEUTRAL BAR ASSY
Family Brand Name:
NSI Industries
Heights:
2-3/4 Inch
Length:
6.449 Inch
Material:
6061T-6 Aluminum Alloy
Size:
L=6.449 - H=2.750 - W=2.250 IN
Sub Brand:
Mechanical Connector
Type:
Neutral Bars
Voltage:
600 Volt
Widths:
2.25 in
Wire Size:
6 AWG-350 kcmil
SoneparProductId:
SKU_US_127246869

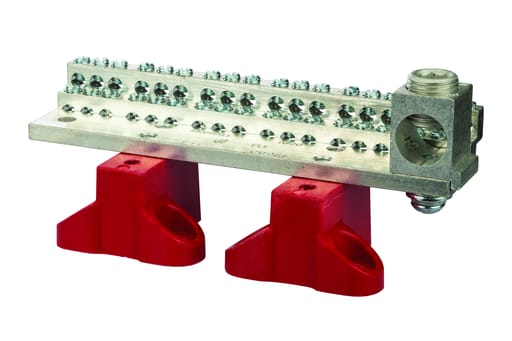

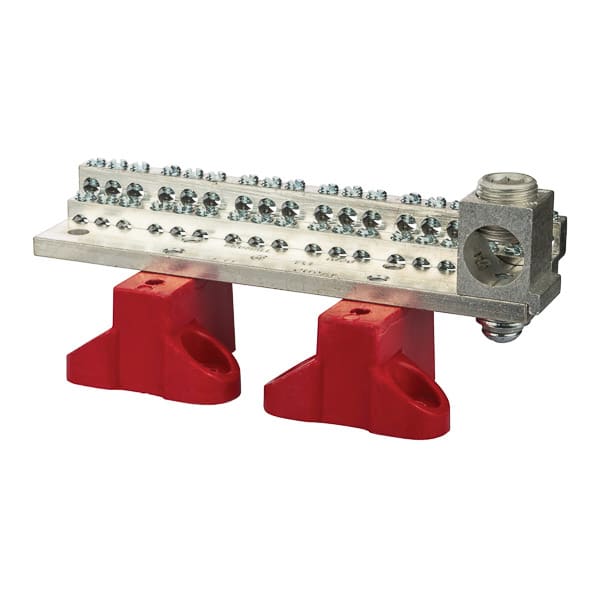

225A Stacked Neutral Bar, 4-14 AWG 36 Circuits & 350 MCM - 6 AWG Main Lug With Mtg Base Certifications and Standards: CSA; UL Recognized - Features: These stacked neutral assemblies offer the ultimate in compact design and performance; Wire holes are stacked to minimize width. One-piece construction provides superior mechanical performance; Made from high strength 6061T-6 aluminum alloy; Options include a 350 mcm main lug and a high strength, glass-filled polyester mounting base for isolated mounting; Available in 12 to 42 wire holes (4-14 awg)
