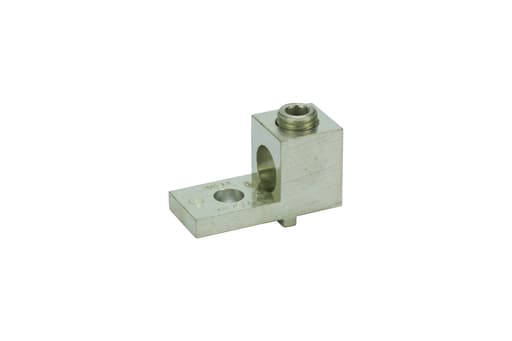

NSi - NSI 2/0TP Turn Prevent Lug 2/0-14

CopyCopy
NSi - NSI 2/0TP Turn Prevent Lug 2/0-14

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662381002402

  • Applications - Wire Termination

  • Buy American - Y

  • Catalog Number - 2/0TP

  • Color - Aluminum

Packaging

  • 1 ea

EAN

00662381002402

Part #

208453

Catalog #

2/0TP

Commercial reference

2/0TP

12-Digit UPC:

662381002402

Applications:

Wire Termination

Buy American:

Y

Catalog Number:

2/0TP

Color:

Aluminum

Conductor Size:

14-2/0 AWG

Country of Origin:

USA

ERP_productname:

NSI 2/0TP TURN PREVENT LUG 2/0-14 AWG (AL/CU)

Family Brand Name:

NSI Industries

Finish:

Tin Plated

Heights:

1.13 Inch

Length:

1.47 Inch

Material:

6061T-6 Aluminum Alloy

Number of Conductors:

1,1

Number of Poles:

1 Pole

Number of Ports:

1

Sub Brand:

Mechanical Connector

Type:

Aluminum Turn Prevent Lug

Voltage:

600 Volt

Widths:

0.88 in

Wire Size:

14-00 AWG

SoneparProductId:

SKU_US_72304193

Dual Rated Turn Prevent Lug 2/0-14 AWG with 1/4 Inch bolt size: Dual Rated Turn Prevent Lugs are made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with both copper and aluminum conductors. Rated 600V (2000V max. per UL486B). UL 486A/B Listed. Temperature Rating 90 degrees C. Features: Large size set-screw connectors with wire holes stacked on top of each other to minimize the width of the connector; Made of 6061T-6 aluminum alloy; Electro-tin plated for low contact resistance; For use with copper or aluminum conductors; Turn prevent node located on bottom prevents rotation of lug - Certifications and Standards: cULus; UL Listed; UL 486A-486B
