NSi - NSI 2-1000L2 Nema Panel Lug(2)1000-

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662381001443

  • Applications - Wire Termination

  • Buy American - Y

  • Catalog Number - 2-1000L2

  • Color - Aluminum

Packaging

  • 1 ea

EAN

00662381001443

Part #

291430

Catalog #

2-1000L2

Commercial reference

2-1000L2

12-Digit UPC:

662381001443

Applications:

Wire Termination

Buy American:

Y

Catalog Number:

2-1000L2

Color:

Aluminum

Conductor Size:

500-1000 kcmil

Country of Origin:

USA

ERP_productname:

NSI 2-1000L2 1000-500MCM PNLBRD LUG

Family Brand Name:

NSI Industries

Finish:

Tin Plated

Heights:

1.88 Inch

Length:

4.94 Inch

Material:

6061T-6 Aluminum Alloy

Number of Conductors:

2

Number of Poles:

1 Pole

Number of Ports:

2

Sub Brand:

Mechanical Connector

Type:

Panelboard Lug

Voltage:

600 Volt

Widths:

3.19 in

Wire Size:

500-1000 kcmil

SoneparProductId:

SKU_US_71934017

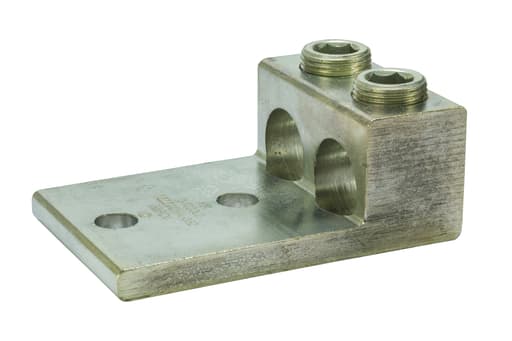

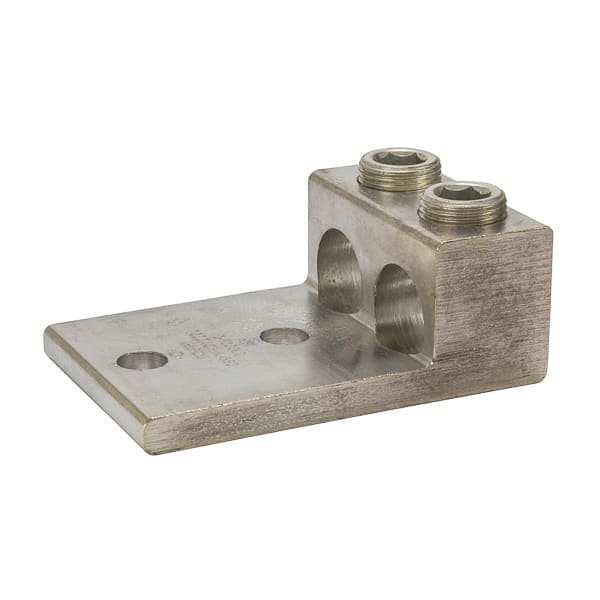

2 Port Panelboard Lug 1000 MCM - 500 MCM Panelboard style for multi-conductor with NEMA mounting hole spacing for turn prevent and secureness. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Rated 600 volts (2000V max per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.750". Certifications and Standards: cULus; UL Listed; UL 486A-486B - Features: Panelboard style for multi-conductor with NEMA mounting hole spacing for turn-prevent and secureness; Made of 6061T-6 aluminum alloy; Electro-tin plated for low contact resistance; For use with copper or aluminum conductors; All hole spacing is NEMA standard of 1.750 inch
