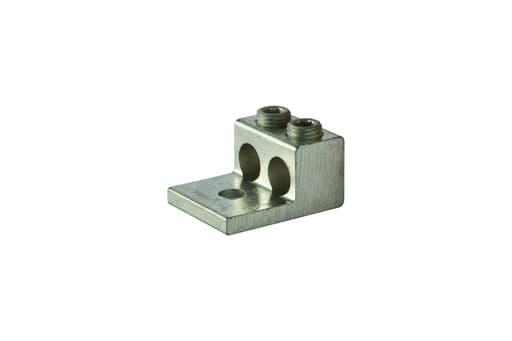

NSi - NSI 2-250T 3/8 Inch 6 AWG to 250 MCM Aluminum 2-Port 1-Hole Dual Rated Lug

CopyCopy
NSi - NSI 2-250T 3/8 Inch 6 AWG to 250 MCM Aluminum 2-Port 1-Hole Dual Rated Lug

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662381001221

  • Applications - Wire Termination

  • Buy American - Y

  • Catalog Number - 2-250T

  • Color - Aluminum

Packaging

  • 1 ea

EAN

00662381001221

Part #

139514

Catalog #

2-250T

Commercial reference

2-250T

12-Digit UPC:

662381001221

Applications:

Wire Termination

Buy American:

Y

Catalog Number:

2-250T

Color:

Aluminum

Conductor Size:

250 kcmil

Country of Origin:

USA

ERP_productname:

NSI 2-250T DUAL RATED LUG TWO 250-6

Family Brand Name:

NSI Industries

Finish:

Tin Plated

Heights:

1.02 Inch

Length:

2.56 Inch

Material:

6061T-6 Aluminum Alloy

Number of Conductors:

2

Number of Poles:

1 Pole

Number of Ports:

2

Sub Brand:

Mechanical Connector

Type:

Aluminum Double Lug

Voltage:

600 Volt

Widths:

1.63 in

Wire Size:

250 kcmil

SoneparProductId:

SKU_US_26508957

2 Port Aluminum Lug 250 MCM - 6 AWG Aluminum Double Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts, 90 degrees C. UL 486A/B Listed. Certifications and Standards: cULus; UL Listed; UL 486A-486B - Features: Versatile and reusable set-screw connectors made of 6061T-6 aluminum alloy; Electro-tin plated for low contact resistance; For use with copper or aluminum conductors
