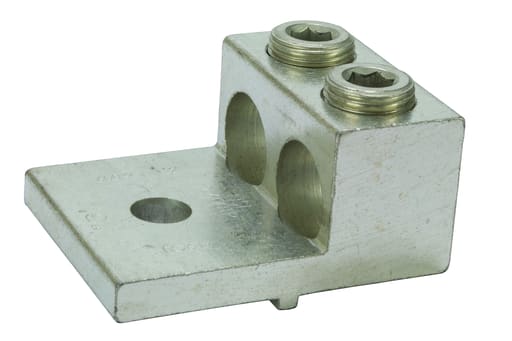

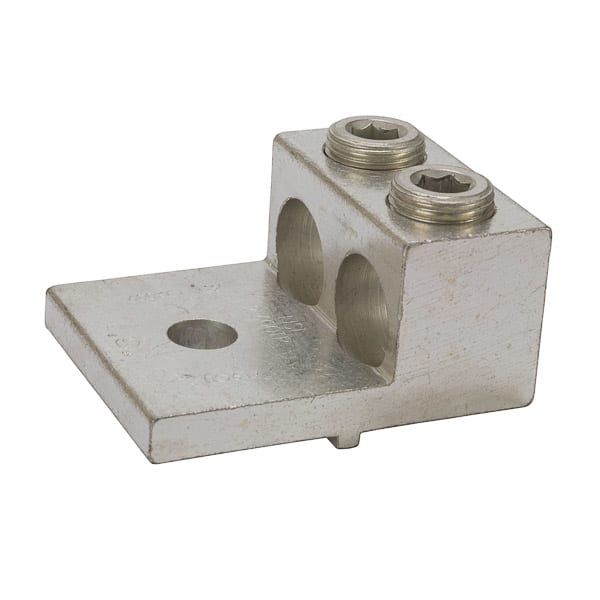

NSi - NSI 2-600TP Turn Prevent Two 600-2

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662381002471

  • Applications - Wire Termination

  • Catalog Number - 2-600TP

  • Color - Aluminum

  • Conductor Size - 2 AWG

Packaging

  • 1 ea

EAN

00662381002471

Part #

326614

Catalog #

2-600TP

Commercial reference

2-600TP

12-Digit UPC:

662381002471

Applications:

Wire Termination

Catalog Number:

2-600TP

Color:

Aluminum

Conductor Size:

2 AWG

Country of Origin:

USA

ERP_productname:

NSI 2-600TP EZEX44 CONNECTOR. 100/JAR

Family Brand Name:

NSI Industries

Finish:

Tin Plated

Heights:

1.51 Inch

Length:

3.18 Inch

Material:

6061T-6 Aluminum Alloy

Number of Conductors:

2

Number of Poles:

1 Pole

Number of Ports:

2

Sub Brand:

Mechanical Connector

Type:

Aluminum Turn Prevent Lug

Voltage:

600 Volt

Widths:

2.41 in

Wire Size:

2 AWG

SoneparProductId:

SKU_US_25189883

Dual Rated Turn Prevent Lug (2) 600 MCM - 2 AWG Dual Rated Turn Prevent Lugs are made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with both copper and aluminum conductors. Rated 600V (2000V max. per UL486B). UL 486A/B Listed. Temperature Rating 90 degrees C. Certifications and Standards: cULus; UL Listed; UL 486A-486B - Features: Large size set-screw connectors with wire holes stacked on top of each other to minimize the width of the connector; Made of 6061T-6 aluminum alloy; Electro-tin plated for low contact resistance; For use with copper or aluminum conductors; Turn prevent node located on bottom prevents rotation of lug
