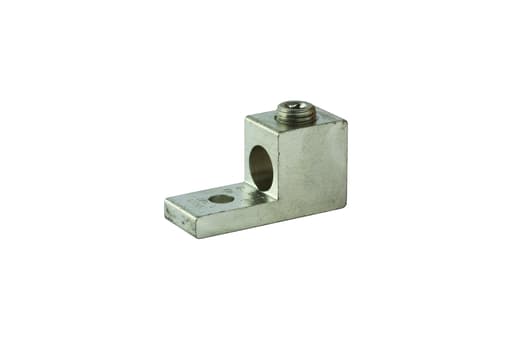

NSi - NSI 250T 0.33 Inch 6 AWG to 250 MCM Aluminum 1-Port 1-Hole Dual Rated Lug

CopyCopy
NSi - NSI 250T 0.33 Inch 6 AWG to 250 MCM Aluminum 1-Port 1-Hole Dual Rated Lug

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662381001061

  • Applications - Wire Termination

  • Buy American - Y

  • Catalog Number - 250T

  • Color - Aluminum

Packaging

  • 1 ea

EAN

00662381001061

Part #

198227

Catalog #

250T

Commercial reference

250T

12-Digit UPC:

662381001061

Applications:

Wire Termination

Buy American:

Y

Catalog Number:

250T

Color:

Aluminum

Conductor Size:

250 kcmil

Country of Origin:

USA

ERP_productname:

NSI 250T ALUMINUM SINGLE LUG 250 MCM - 6 AWG (AL/CU)

Family Brand Name:

NSI Industries

Finish:

Tin Plated

Heights:

1.02 Inch

Length:

2 Inch

Material:

6061T-6 Aluminum Alloy

Number of Conductors:

1,1

Number of Poles:

1 Pole

Number of Ports:

1

Sub Brand:

Mechanical Connector

Type:

Aluminum Single Lug

Voltage:

600 Volt

Widths:

0.88 in

Wire Size:

250 kcmil

SoneparProductId:

SKU_US_26618445

1 Port Aluminum Lug 250 MCM - 6 AWG Aluminum Single Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Temperature Rating 90 degrees C. Rated 600 volts (2000V max. per UL486B). UL 486A/B Listed. . Features: Versatile and reusable set-screw connectors made of 6061T-6 aluminum alloy; Electro-tin plated for low contact resistance; For use with copper or aluminum conductors - Certifications and Standards: cULus; UL Listed; UL 486A-486B
