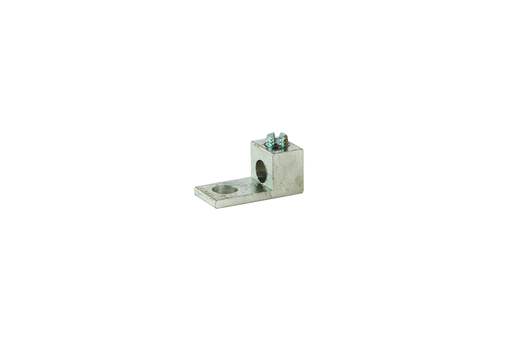

NSi - NSI 2T 1/4 Inch 14 to 2 AWG Aluminum 1-Port 1-Hole Dual Rated Lug
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 662381001023
Applications - Wire Termination
Buy American - Y
Catalog Number - 2T
Color - Aluminum
Packaging
1 ea
EAN
00662381001023
Part #
176074
Catalog #
2T
Commercial reference
2T
12-Digit UPC:
662381001023
Applications:
Wire Termination
Buy American:
Y
Catalog Number:
2T
Color:
Aluminum
Conductor Size:
14-2 AWG
Country of Origin:
India
ERP_productname:
NSI 2T DUAL RATED LUG 2-14
Family Brand Name:
NSI Industries
Finish:
Tin Plated
Heights:
0.55 Inch
Length:
1.16 Inch
Material:
6061T-6 Aluminum Alloy
Number of Conductors:
1,1
Number of Poles:
1 Pole
Number of Ports:
1
Sub Brand:
Mechanical Connector
Type:
Aluminum Single Lug
Voltage:
600 Volt
Widths:
0.5 in
Wire Size:
14-2 AWG
SoneparProductId:
SKU_US_26618485
1 Port Aluminum Lug 2-14 AWG Aluminum Single Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Temperature Rating 90 degrees C. Rated 600 volts (2000V max. per UL486B). UL 486A/B Listed. . Features: Versatile and reusable set-screw connectors made of 6061T-6 aluminum alloy; Electro-tin plated for low contact resistance; For use with copper or aluminum conductors - Certifications and Standards: cULus; UL Listed; UL 486A-486B
