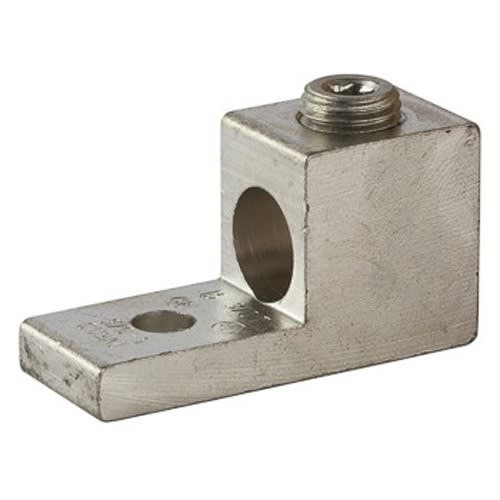

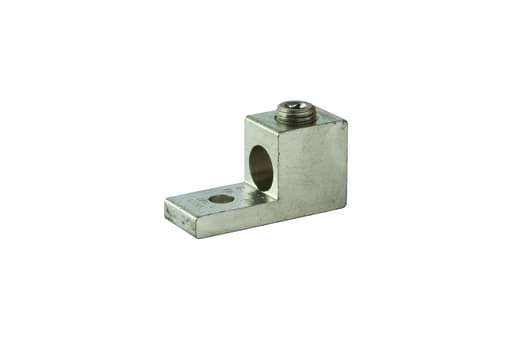

NSi - NSI 3/0T 0.26 Inch 6 to 3/0 AWG Aluminum 1-Port 1-Hole Dual Rated Lug

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662381001054

  • Applications - Wire Termination

  • Buy American - Y

  • Catalog Number - 3/0T

  • Color - Aluminum

Packaging

  • 1 ea

EAN

00662381001054

Part #

176453

Catalog #

3/0T

Commercial reference

3/0T

12-Digit UPC:

662381001054

Applications:

Wire Termination

Buy American:

Y

Catalog Number:

3/0T

Color:

Aluminum

Conductor Size:

6-3/0 AWG

Country of Origin:

USA

ERP_productname:

NSI 3/0T DUAL RATED LUG 3/0-6

Family Brand Name:

NSI Industries

Finish:

Tin Plated

Heights:

0.89 Inch

Length:

1-7/8 Inch

Material:

6061T-6 Aluminum Alloy

Number of Conductors:

1,1

Number of Poles:

1 Pole

Number of Ports:

1

Sub Brand:

Mechanical Connector

Type:

Aluminum Single Lug

Voltage:

600 Volt

Widths:

0.7 in

Wire Size:

6-000 AWG

SoneparProductId:

SKU_US_26805198

Aluminum Dual-Rated Single Lug 3/0-6 AWG with 1/4 Inch bolt size for use with copper or aluminum conductors. These Lugs are versatile and feature reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Temperature Rating 90 degrees C. Rated 600 volts (2000V max. per UL486B). UL 486A/B Listed. . Features: Versatile and reusable set-screw connectors made of 6061T-6 aluminum alloy; Electro-tin plated for low contact resistance; For use with copper or aluminum conductors; 1/4\" Bolt Size; Rated 600 volts (2000V max. per UL486B) - Certifications and Standards: cULus; UL Listed; UL 486A-486B
