NSi - NSI 4/0TC Extruded Copper Single Lu
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 662381005045
Applications - Wire Termination
Buy American - Y
Catalog Number - 4/0TC
Color - Copper
Packaging
1 ea
EAN
00662381005045
Part #
270743
Catalog #
4/0TC
Commercial reference
4/0TC
12-Digit UPC:
662381005045
Applications:
Wire Termination
Buy American:
Y
Catalog Number:
4/0TC
Color:
Copper
Conductor Size:
2-4/0 AWG
Country of Origin:
USA
ERP_productname:
NSI 4/0TC 4/0-2AWG EXTR CU LUG
Family Brand Name:
NSI Industries
Finish:
Copper
Heights:
0.95 Inch
Length:
1.95 Inch
Material:
Copper
Number of Conductors:
1,1
Number of Poles:
1 Pole
Number of Ports:
1
Sub Brand:
Mechanical Connector
Type:
Copper Single Lug
Voltage:
600 Volt
Widths:
0.812 in
Wire Size:
6-0000 AWG
SoneparProductId:
SKU_US_52654817

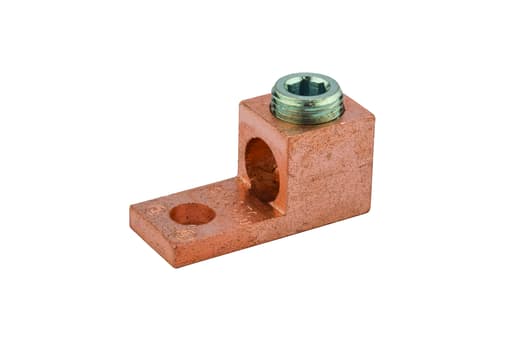

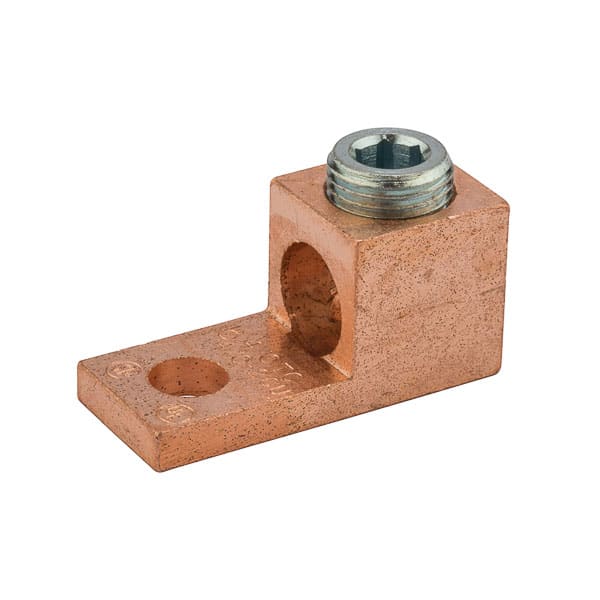

Extruded Copper Single Lug - 4/0-2 AWG with 3/8 Inch Bolt Size is a solid, one-piece copper connector made from extruded copper for superior mechanical strength and excellent performance. Steel Screw. Suitable for use with copper wire only. 600V (2000V max. per UL486B). UL 486A/B Listed Wire Connectors. Features: Solid one-piece copper connector made from extruded copper for superior mechanical strength and excellent electrical performance; Steel screw; For use with copper wire only; 3/8\" Mounting Bolt size; UL Listed E155274 - Certifications and Standards: cULus; UL Listed; UL 486A
