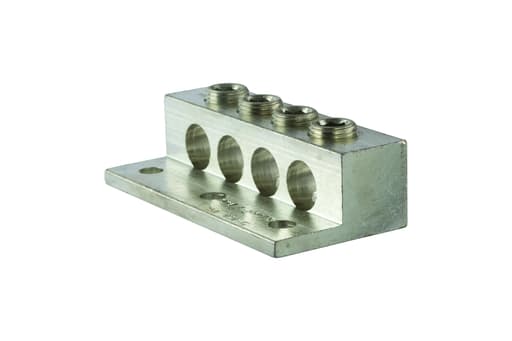

NSi - NSI 4-350T3 Trans Lug (4) 350-6 Awg

CopyCopy
NSi - NSI 4-350T3 Trans Lug (4) 350-6 Awg

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662381026927

  • Applications - Wire Termination

  • Buy American - Y

  • Catalog Number - 4-350T3

  • Color - Aluminum

Packaging

  • 1 ea

EAN

00662381026927

Part #

145166

Catalog #

4-350T3

Commercial reference

4-350T3

12-Digit UPC:

662381026927

Applications:

Wire Termination

Buy American:

Y

Catalog Number:

4-350T3

Color:

Aluminum

Conductor Size:

350 kcmil

Country of Origin:

USA

ERP_productname:

NSI 4-350T3 TRANS LUG (4) 350-6 AWG 3 MTG HOLES

Family Brand Name:

NSI Industries

Finish:

Tin Plated

Heights:

1-1/4 Inch

Length:

2-1/4 Inch

Material:

6061T-6 Aluminum Alloy

Number of Conductors:

4

Number of Poles:

1 Pole

Number of Ports:

4

Sub Brand:

Utilities

Type:

Transformer Lug

Voltage:

600 Volt

Widths:

3.75 in

Wire Size:

350 kcmil

SoneparProductId:

SKU_US_25186183

4 Port Dual Rated Transformer Lug 350 MCM - 6 AWG Aluminum Dual Rated Transformer Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy for superior electrical and mechanical performance. Two set screws per wire hole ensure an exceptional connection. Electro-tin plated for low resistance. For use with copper or aluminum conductors. Mounting hole spacing is NEMA 1-3/4". Meets or exceeds ANSI C119.4 Class A. Rated 600 Volts. Temperature Rating 90 degrees C. Features: Versatile and reusable set-screw connectors made from high strength 6061-T6 aluminum alloy for superior electrical and mechanical performance; Two set-screws per wire hole ensure an exceptional connection; Electro-tin plated for low contact resistance; For use with copper or aluminum conductors; Mounting hole spacing is NEMA 1 3/4\" spacing - Certifications and Standards: ANSI
