NSi - NSI 4-800L4 Nema Panelboard Lug (4)

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662381001634

  • Applications - Wire Termination

  • Buy American - Y

  • Catalog Number - 4-800L4

  • Color - Aluminum

Packaging

  • 1 ea

EAN

00662381001634

Part #

304100

Catalog #

4-800L4

Commercial reference

4-800L4

12-Digit UPC:

662381001634

Applications:

Wire Termination

Buy American:

Y

Catalog Number:

4-800L4

Color:

Aluminum

Conductor Size:

300-800 kcmil

Country of Origin:

USA

ERP_productname:

NSI 4-800L4 AL/CU CONN. 4-14 AWG 6 HOLES 4 CIRCUITS

Family Brand Name:

NSI Industries

Finish:

Tin Plated

Heights:

1.69 Inch

Length:

4-3/4 Inch

Material:

6061T-6 Aluminum Alloy

Number of Conductors:

4

Number of Poles:

1 Pole

Number of Ports:

4

Sub Brand:

Mechanical Connector

Type:

Panelboard Lug

Voltage:

600 Volt

Widths:

5.38 in

Wire Size:

300-800 kcmil

SoneparProductId:

SKU_US_71998542

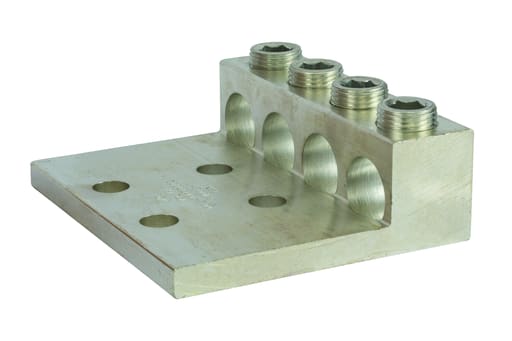

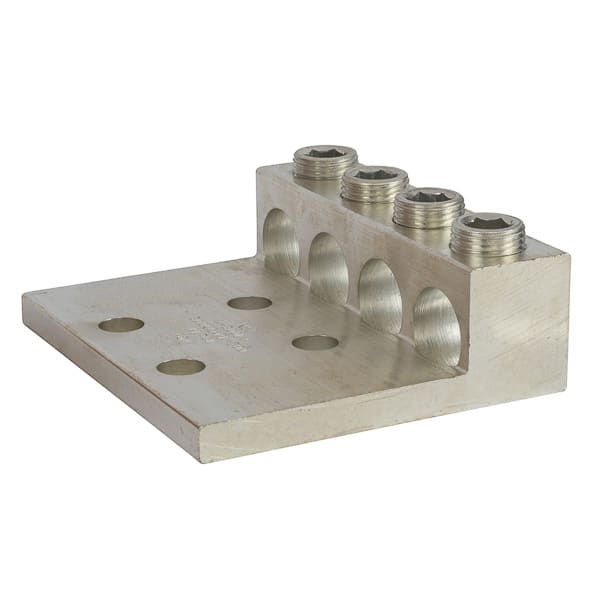

4 Port Panelboard Lug 800 MCM - 350 MCM: Large size set screw connectors with multiple mounting holes for a secure, turn-prevent connection. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. For use with copper or aluminum conductors. 600V (2000V max, per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.75". Features: Large size set-screw connectors with multiple mounting, NEMA spaced holes for a secure, turn-prevent connection; Made of 6061T-6 aluminum alloy; Tin plated for low contact resistance; For use with copper or aluminum conductors; All hole spacing is NEMA standard of 1.758 inch - Certifications and Standards: cULus; UL Listed; UL 486A-486B
