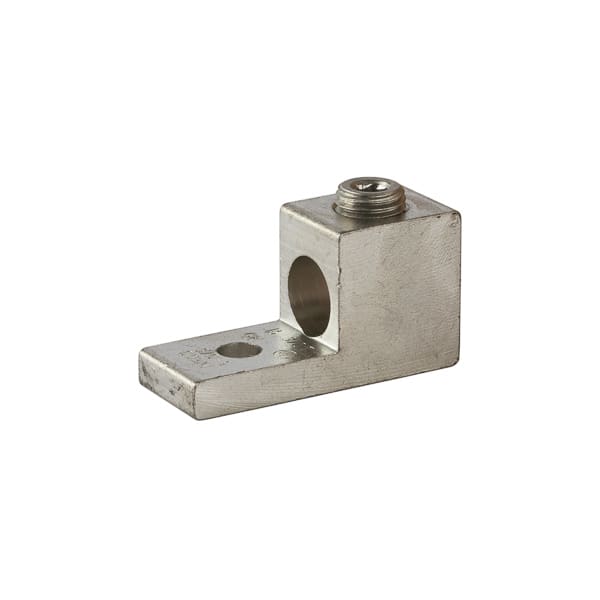

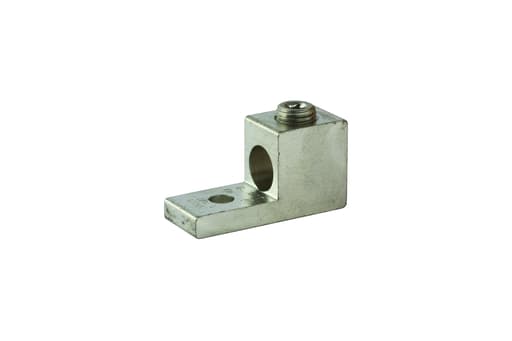

NSi - NSI 800T 0.56 Inch 300 to 800 MCM Aluminum 1-Port 1-Hole Dual Rated Lug

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662381001115

  • Applications - Wire Termination

  • Catalog Number - 800T

  • Color - Aluminum

  • Conductor Size - 300-800 kcmil

Packaging

  • 1 ea

EAN

00662381001115

Part #

335746

Catalog #

800T

Commercial reference

800T

12-Digit UPC:

662381001115

Applications:

Wire Termination

Catalog Number:

800T

Color:

Aluminum

Conductor Size:

300-800 kcmil

Country of Origin:

USA

ERP_productname:

NSI 800T DUAL RATED LUG 800-300 (100 EA)

Family Brand Name:

NSI Industries

Finish:

Tin Plated

Heights:

1.69 Inch

Length:

3-1/4 Inch

Material:

6061T-6 Aluminum Alloy

Number of Conductors:

1,1

Number of Poles:

1 Pole

Number of Ports:

1

Sub Brand:

Mechanical Connector

Type:

Aluminum Single Lug

Voltage:

600 Volt

Widths:

1.44 in

Wire Size:

300-800 kcmil

SoneparProductId:

SKU_US_26618405

1 Port Aluminum Lug 800-300 MCM Aluminum Single Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Temperature Rating 90 degrees C. Rated 600 volts (2000V max. per UL486B). UL 486A/B Listed. . Certifications and Standards: cULus; UL Listed; UL 486A-486B - Features: Versatile and reusable set-screw connectors made of 6061T-6 aluminum alloy; Electro-tin plated for low contact resistance; For use with copper or aluminum conductors
