NSi - NSI 800T-3 Step Panel Lug (3)800-30

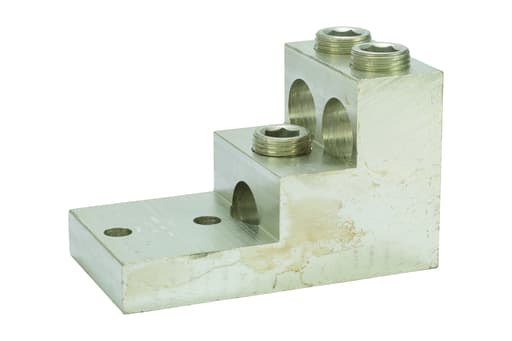

3 Port Stacked Lug 800 - 300 MCM Stacked Lugs are large size set screw connectors with wire holes stacked on top of each other to minimize the width of the connector. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts (2000V max. per UL486B). UL486A/B Listed. Temperature rating 90 degrees C. Mounting hole spacing is NEMA standard of 1.75". Features: Large size set-screw connectors with wire holes stacked on top of each other to minimize the width of the connector; Made of 6061T-6 aluminum alloy; Electro-tin plated for low contact resistance; For use with copper or aluminum conductors - Certifications and Standards: cULus; UL Listed; UL 486A-486B
