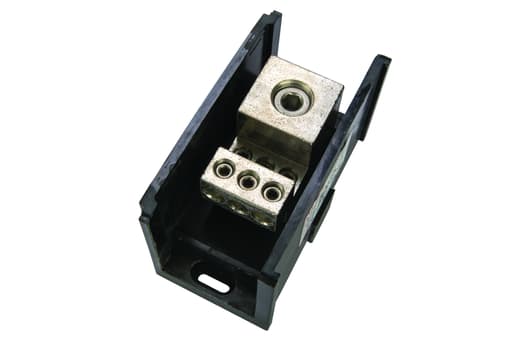

NSi - NSI AL-R1-K6 4 AWG to 500 MCM Line 14 to 2/0 AWG Load 7-Terminal Black Aluminum Single Primary Power Distribution Block

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662381165473

  • Amperage - 380 Amp

  • Applications - Terminate, Splice, Tap Power Connectors

  • Catalog Number - AL-R1-K6

  • Color - Black

Packaging

  • 1 ea

EAN

00662381165473

Part #

119461

Catalog #

AL-R1-K6

Commercial reference

AL-R1-K6

12-Digit UPC:

662381165473

Amperage:

380 Amp

Applications:

Terminate, Splice, Tap Power Connectors

Catalog Number:

AL-R1-K6

Color:

Black

Conductor Size:

4 AWG-500 kcmil

Country of Origin:

USA

ERP_productname:

NSI AL-R1-K6 (1) 500-4 PRIMARY (6) 2/0-14 SECONDARY, POWER DISTRIBUTION BLOCK

Family Brand Name:

NSI Industries

Heights:

3-1/4 Inch

Length:

5-1/2 Inch

Material:

Aluminum

Mounting Type:

2 Mounting Holes

Size:

L=5.50 - H=3.25 - W=2.90 IN

Sub Brand:

Connector Blocks

Type:

Single Primary

Voltage:

600 Volt

Widths:

2.9 in

Wire Size:

4 AWG-500 kcmil

SoneparProductId:

SKU_US_26617865

Power Distribution Block (1) 500 MCM-4 AWG Primary (6) 2/0-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set. Certifications and Standards: CSA; UL Recognized - Features: Each block can stand alone or combine with other blocks to form a multi-block set; Add as many holes as you need, in any configuration you want; There are no end pieces or connector pieces to fool around with; The connector body is made from high strength, high conductivity aluminum alloy and is mounted in a high strength glass-filled polyester base; Connector BlokTM covers are available in 3 sizes and fits all styles and configurations
