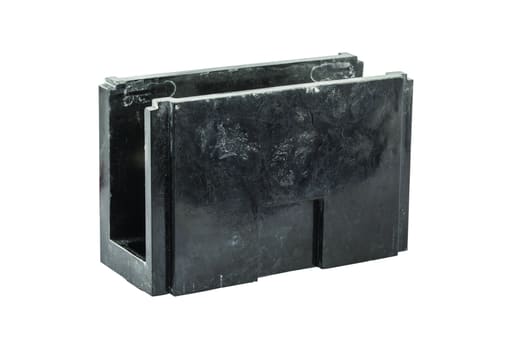

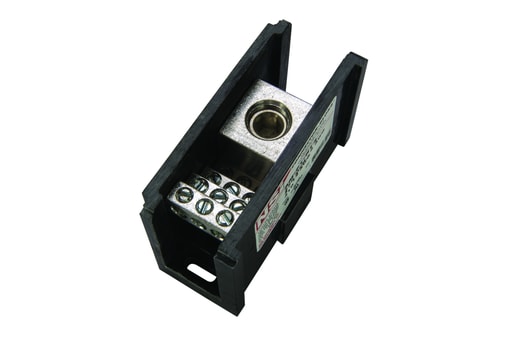

NSi - NSI AM-P1-H12 6 AWG to 350 MCM Line 14 to 4 AWG Load 13-Terminal Black Aluminum Single Primary Power Distribution Block

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662381165404

  • Amperage - 310 Amp

  • Applications - Terminate, Splice, Tap Power Connectors

  • Buy American - Y

  • Catalog Number - AM-P1-H12

Packaging

  • 1 ea

EAN

00662381165404

Part #

180111

Catalog #

AM-P1-H12

Commercial reference

AM-P1-H12

12-Digit UPC:

662381165404

Amperage:

310 Amp

Applications:

Terminate, Splice, Tap Power Connectors

Buy American:

Y

Catalog Number:

AM-P1-H12

Color:

Black

Conductor Size:

6 AWG-350 kcmil

Country of Origin:

USA

ERP_productname:

NSI AM-P1-H12 1X350-6 LINE 12X4-14 LOAD

Family Brand Name:

NSI Industries

Heights:

2.62 Inch

Length:

4 Inch

Material:

Aluminum

Mounting Type:

2 Mounting Holes

Size:

L=4.00 - H=2.62 - W=1.71 IN

Sub Brand:

Connector Blocks

Type:

Single Primary

Voltage:

600 Volt

Widths:

1.71 in

Wire Size:

6 AWG-350 kcmil

SoneparProductId:

SKU_US_26618210

Power Distribution Block (1) 350 MCM-6 AWG Primary (12) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set. Features: Each block can stand alone or combine with other blocks to form a multi-block set; Add as many holes as you need, in any configuration you want; There are no end pieces or connector pieces to fool around with; The connector body is made from high strength, high conductivity aluminum alloy and is mounted in a high strength glass-filled polyester base; Connector BlokTM covers are available in 3 sizes and fits all styles and configurations - Certifications and Standards: CSA; UL Recognized
