NSi - NSI BS400T 9/16 Inch 4 AWG to 600 MCM/1/0 AWG to 250 MCM Tinned Aluminum 3-Conductor Dual Range Lug

CopyCopy

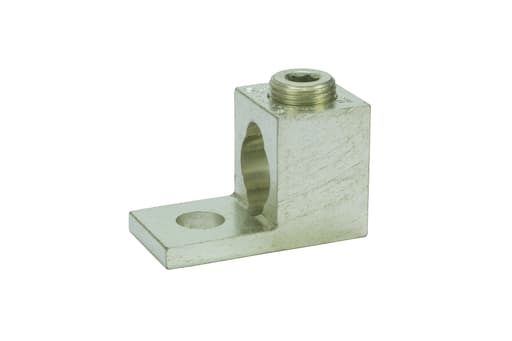

NSi - NSI BS400T 9/16 Inch 4 AWG to 600 MCM/1/0 AWG to 250 MCM Tinned Aluminum 3-Conductor Dual Range Lug

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662381002006

  • Applications - Wire Termination

  • Buy American - Y

  • Catalog Number - BS400T

  • Color - Aluminum

Packaging

  • 1 ea

EAN

00662381002006

Part #

144493

Catalog #

BS400T

Commercial reference

BS400T

12-Digit UPC:

662381002006

Applications:

Wire Termination

Buy American:

Y

Catalog Number:

BS400T

Color:

Aluminum

Conductor Size:

1/0 AWG-250 kcmil

Country of Origin:

USA

ERP_productname:

NSI BS400T 600-4 250-1/0 DUAL RANGE

Family Brand Name:

NSI Industries

Finish:

Tin Plated

Heights:

1.81 Inch

Length:

2.81 Inch

Material:

6061T-6 Aluminum Alloy

Number of Conductors:

2

Number of Poles:

1 Pole

Number of Ports:

1

Sub Brand:

Mechanical Connector

Type:

Aluminum Dual Range Lug

Voltage:

600 Volt

Widths:

1.38 in

Wire Size:

0 AWG-250 kcmil

SoneparProductId:

SKU_US_26448985

Dual Range Lug One 600 MCM - 4 AWG, Two 250 MCM - 1/0 AWG - 1 Count Dual Range Lugs are set screw connectors that will accept either one or two wires. Made of 6061T-6 aluminum alloy. Electro-pin plated for low contact resistance. For use with copper or aluminum conductors. Rated 600 Volts (2000V max. per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. Certifications and Standards: CSA; UL Listed; UL 486A-486B - Features: Set-screw connectors that will accept either one or two wires; Made of 6061T-6 aluminum alloy; Electro-tin plated for low contact resistance; For use with copper or aluminum conductors; UL Listed Wire Connector
