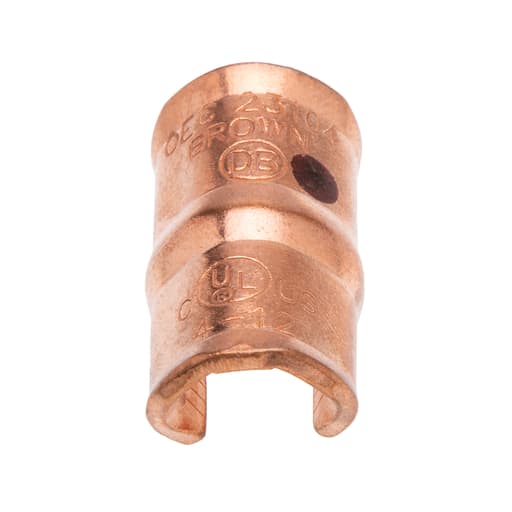

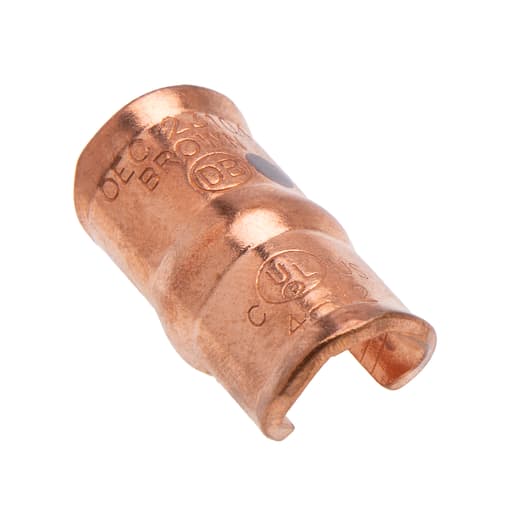

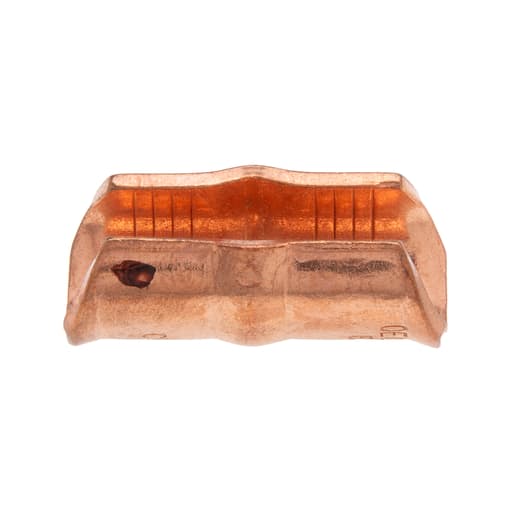

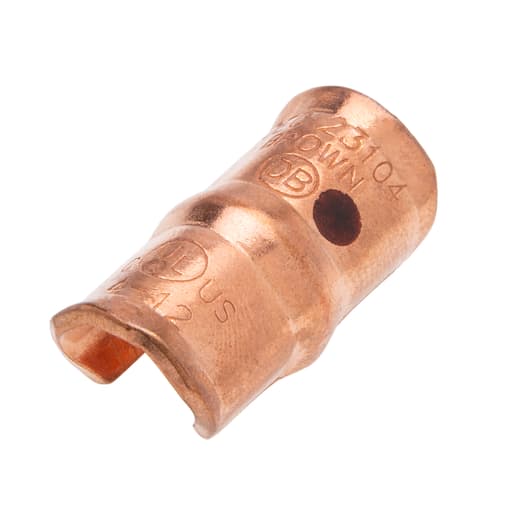

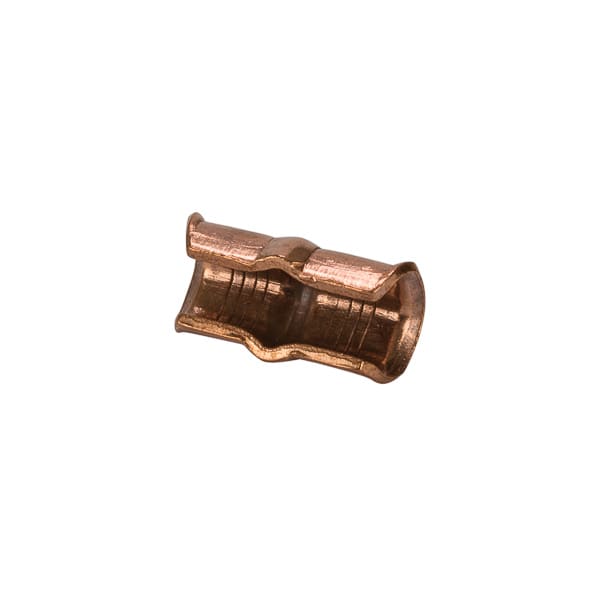

NSi - NSI CT-104 6 to 4 AWG Main Brown Copper Compression C-Tap Connector
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 662381098030
Applications - Terminate, Splice, Tap Power Connectors
Catalog Number - CT-104
Color - Brown
Conductor Size - 4 AWG
Packaging
1 ea
EAN
00662381098030
Part #
382503
Catalog #
CT-104
Commercial reference
CT-104
12-Digit UPC:
662381098030
Applications:
Terminate, Splice, Tap Power Connectors
Catalog Number:
CT-104
Color:
Brown
Conductor Size:
4 AWG
Country of Origin:
India
ERP_productname:
NSI CT-104 COPPER C TAP 4-6 MAIN
Family Brand Name:
NSI Industries
Finish:
Copper
Length:
29.75 mm
Material:
Copper
Size:
4-12 AWG
Sub Brand:
Copper Compression
Type:
C-Taps
Voltage:
600 Volt
Widths:
16.5 mm
SoneparProductId:
SKU_US_25360324
Copper C Tap Grounding Connector for 4 to 6 AWG Copper "C" Taps ensure positive, all around compression with low-resistance and high pull-out values. Made of high conductivity copper, they satisfy the requirements of NEC250-81 and 250-91 for connecting to the grounding electrode system. Rated 600 Volts. Certifications and Standards: cULus; UL Listed; UL 486A, UL 467 - Features: These taps ensure positive, all-around compression with low resistance and high pull-out values; Made of high conductivity copper, they satisfy the requirements of NEC250-81 and 250-91 for connecting to the grounding electrode system; Rated for 600V applications - Additional Notes: FOR TOOL/DIE CRIMPING INFORMATION, PLEASE SEE TABLE ON PAGE 88 - Related Products:
