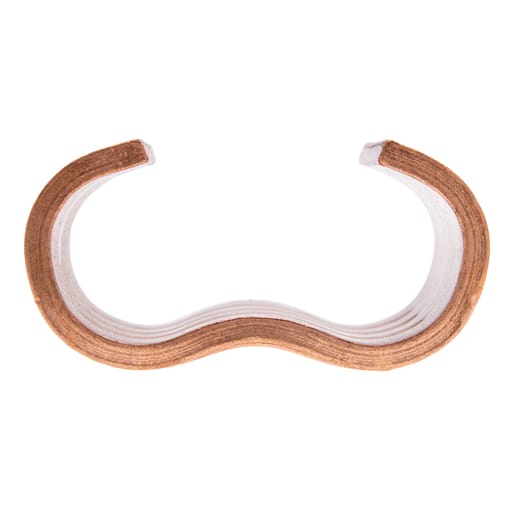

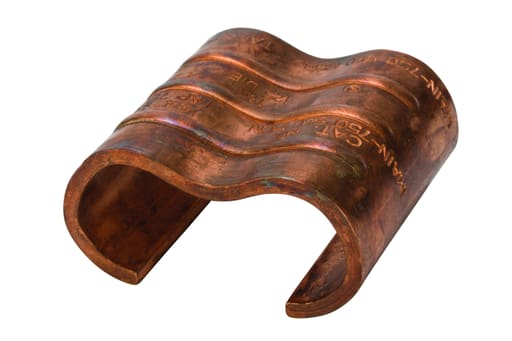

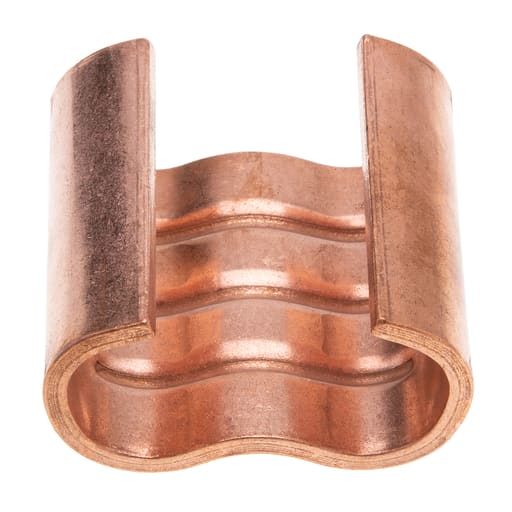

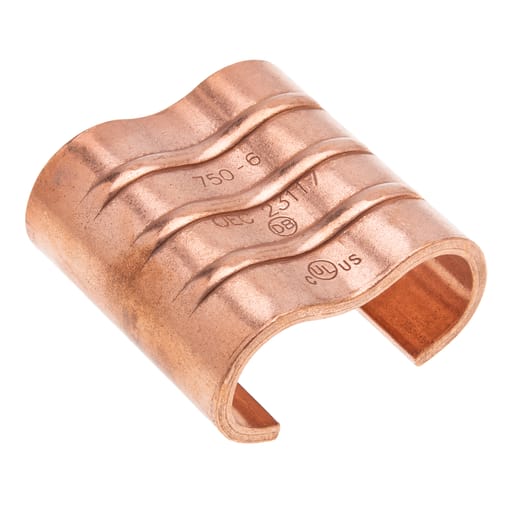

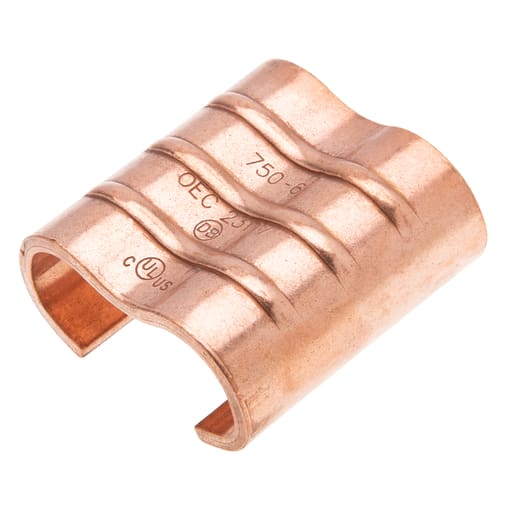

NSi - NSI CTH-117 Copper C Tap 750-500 Ma
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 662381098160
Applications - Terminate, Splice, Tap Power Connectors
Catalog Number - CTH-117
Color - Copper
Conductor Size - 750 kcmil
Packaging
1 ea
EAN
00662381098160
Part #
495751
Catalog #
CTH-117
Commercial reference
CTH-117
12-Digit UPC:
662381098160
Applications:
Terminate, Splice, Tap Power Connectors
Catalog Number:
CTH-117
Color:
Copper
Conductor Size:
750 kcmil
Country of Origin:
Mexico
ERP_productname:
NSI CTH-117 COPPER C TAP 750-500 MAIN
Family Brand Name:
NSI Industries
Finish:
Copper
Length:
69.76 mm
Material:
Copper
Size:
750 MCM-6 AWG
Sub Brand:
Copper Compression
Type:
C-Taps
Voltage:
600 Volt
Widths:
34 mm
SoneparProductId:
SKU_US_52916221
Heavy Duty Copper C Tap Grounding Connector for 750 to 500 MCM APPLICATIONS: Copper "C" Taps ensure positive, all-around compression with low-resistance and high pull-out values. Made of high conductivity copper, they satisfy the requirements of NEC250-81 and 250-91 for connecting to the grounding electrode system. Rated 600 Volts. Features: These taps ensure positive, all-around compression with low resistance and high pull-out values; Made of high conductivity copper, they satisfy the requirements of NEC250 for connecting to the grounding electrode system; Rated for 600V applications - Certifications and Standards: cULus; UL Listed; UL 486A, UL 467 - Additional Notes: FOR TOOL/DIE CRIMPING INFORMATION, PLEASE SEE TABLE ON PAGE 88 - Related Products:
