NSi - NSI ESSLK-2/0 14 to 2/0 AWG 3-Cable Gel Stub Splice Kit with Connector

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662381168603

  • Applications - Splicing Wire

  • Catalog Number - ESSLK-2/0

  • Color - White

  • Conductor Size - 14-2/0 AWG

Packaging

  • 1 ea

EAN

00662381168603

Part #

137789

Catalog #

ESSLK-2/0

Commercial reference

ESSLK-2/0

12-Digit UPC:

662381168603

Applications:

Splicing Wire

Catalog Number:

ESSLK-2/0

Color:

White

Conductor Size:

14-2/0 AWG

Country of Origin:

Mexico

ERP_productname:

NSI ESSLK-2/0 EASY-SPLICE GEL STUB SPLICE KIT

Family Brand Name:

NSI Industries

Number of Wires:

3 Wire

Sub Brand:

Easy-Splice™

Type:

Gel Stub Splice Kit

Voltage:

1000 Volt

Wire Size:

14-00 AWG

SoneparProductId:

SKU_US_26350259

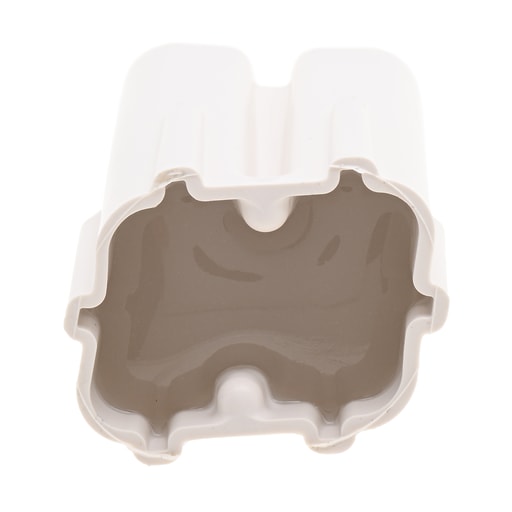

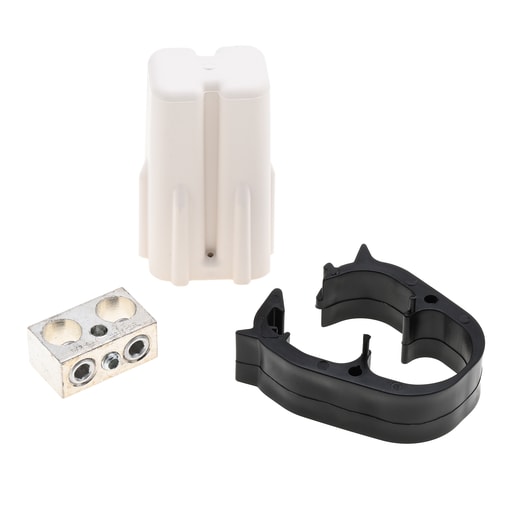

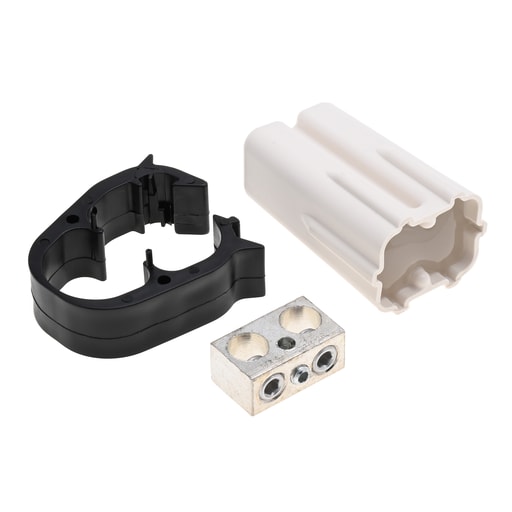

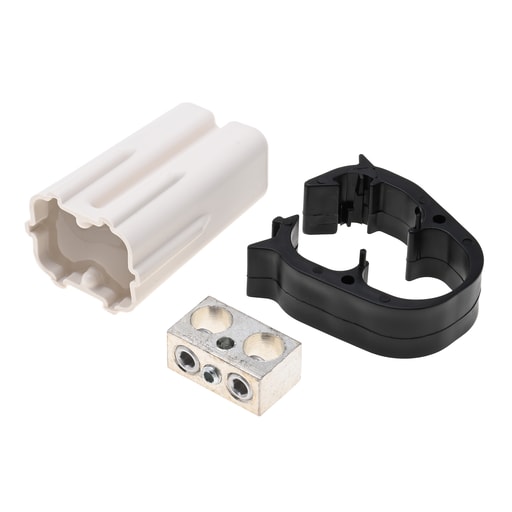

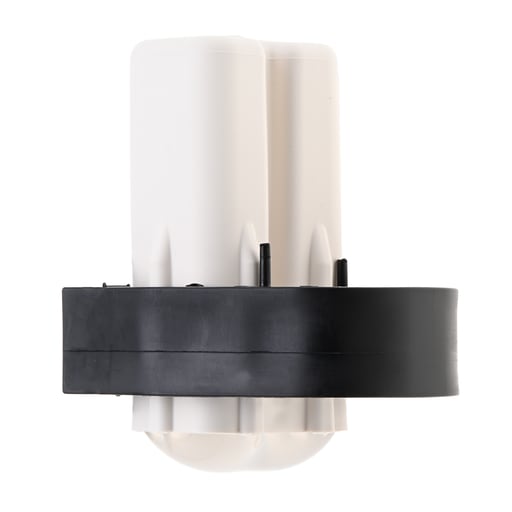

Easy-Splice Gel Stub Splice Kit with Connector Perfect for street light connections. Accepts wires from #14 to 2/0 AWG (feeder cable). Use the single port that accepts #14 to #6 AWG to power the light. Specially formulated material provides excellent abrasion resistance, insulation value and UV resistance. The cap is clear to allow visual inspection of connector positioning during installation and connector performance during service life. Corrosion protection is provided by the sealant gel. APPLICATION: Gel stub splice kit insulates, seals and protects stub splice connections up to 1,000 volts. INSTALLATION: To install, simply push the cover down over the connection and snap the clamp closed. Kit includes a UL listed connector for use with copper and/ or aluminum conductors, a gel filled cap and a cap clamp. Temperature Rating: -40 degrees C to 90 degrees C.
