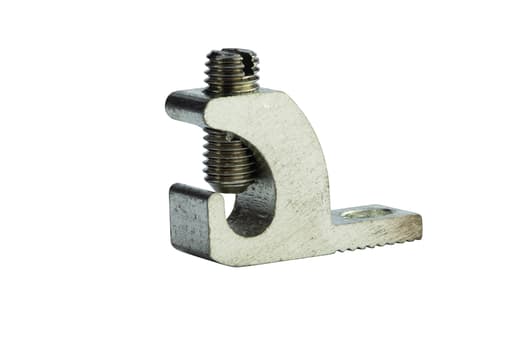

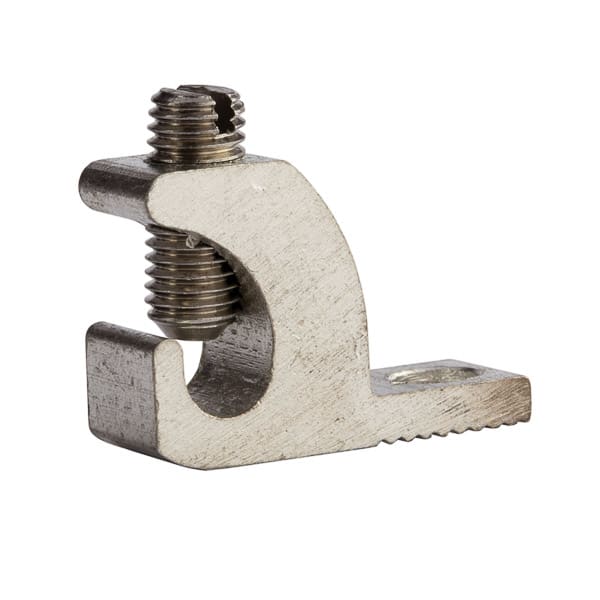

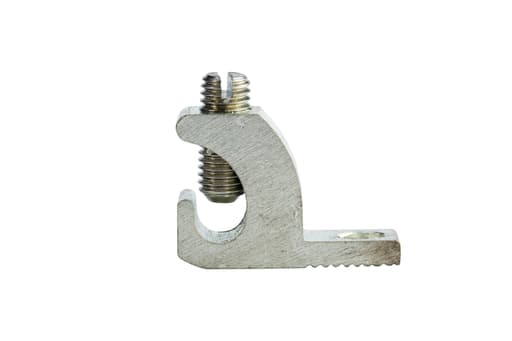

NSi - NSI GLA-4 14 to 4 AWG Aluminum Lay-In Connector

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662381001900

  • Applications - Wire Termination

  • Buy American - Y

  • Catalog Number - GLA-4

  • Color - Aluminum

Packaging

  • 1 ea

EAN

00662381001900

Part #

332555

Catalog #

GLA-4

Commercial reference

GLA-4

12-Digit UPC:

662381001900

Applications:

Wire Termination

Buy American:

Y

Catalog Number:

GLA-4

Color:

Aluminum

Conductor Size:

14-4 AWG

Country of Origin:

India

ERP_productname:

NSI GLA-4 AL LAY IN CONNECTOR 4-14

Family Brand Name:

NSI Industries

Finish:

Tin Plated

Heights:

3/4 Inch

Length:

1.07 Inch

Material:

6061T-6 Aluminum Alloy

Number of Conductors:

1

Number of Poles:

1 Pole

Size:

L=1.07 - H=.750 - W=.380 IN

Sub Brand:

Mechanical Connector

Type:

Aluminum Lay-In Lug

Voltage:

600 Volt

Widths:

0.38 in

Wire Size:

14-4 AWG

SoneparProductId:

SKU_US_26446632

Lay In Connector 4 - 14 AWG offers the ultimate in flexibility. Excellent for grounding and continuous loop applications. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600V (2000V max. per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. Features: Lay-in connectors offer the ultimate in flexibility; Excellent for grounding and continuous loop applications; Made of 6061T-6 aluminum alloy; Electro-tin plated for low contact resistance and stainless steel screw; For use with copper or aluminum conductors - Certifications and Standards: cULus; UL Listed; UL 467
