NSi - NSI GP-250 250MCM Parallel Tap Conn

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662381002532

  • Applications - Wire Termination

  • Buy American - Y

  • Catalog Number - GP-250

  • Color - Aluminum

Packaging

  • 1 ea

EAN

00662381002532

Part #

241961

Catalog #

GP-250

Commercial reference

GP-250

12-Digit UPC:

662381002532

Applications:

Wire Termination

Buy American:

Y

Catalog Number:

GP-250

Color:

Aluminum

Conductor Size:

1/0 AWG-250 kcmil

Country of Origin:

USA

ERP_productname:

NSI GP-250 250MCM PRL TAP CONN

Family Brand Name:

NSI Industries

Finish:

Tin Plated

Heights:

1.31 Inch

Length:

2.28 Inch

Material:

Aluminum

Number of Conductors:

2

Number of Poles:

1 Pole

Size:

L=2.28 - W=1.06 - H=1.31 IN

Sub Brand:

Mechanical Connector

Type:

Aluminum Tap Connector

Voltage:

600 Volt

Widths:

1.06 in

Wire Size:

0 AWG-250 kcmil

SoneparProductId:

SKU_US_73135211

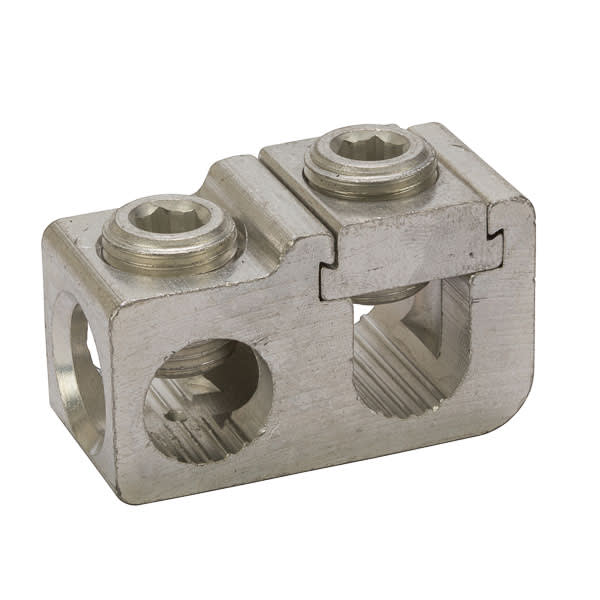

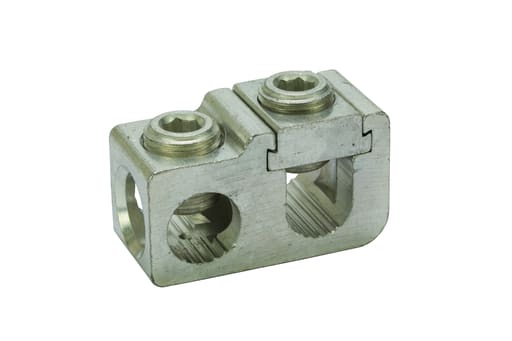

250 MCM Parallel "T" Tap Connector Excellent for tapping off main conductor without cutting due to lay-in feature. Perpendicular tap allows for parallel or "T" tap configuration. Electro-tin plated for low contact resistance. Rated 600V. Temperature rating 90 degrees C. Certifications and Standards: CSA; cULus; UL Listed; UL 486A-486B - Features: Excellent for tapping of main conductor due to lay-in feature; Perpendicular tap allows for parallel or \"T\" tap configuration; Flexible cover allows for either parallel or \"T\" tap wire entry; Secure snap cover eliminates need for taping; Electro-tin plated for low contact resistance
