NSi - NSI IPCS1002 8 to 1/0 AWG Main 10 to 2 AWG Tap Black Thermal Plastic Insulation Piercing Connector

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662381082626

  • Amperage - 150-190 Amp

  • Applications - Splice, Tap Power Connectors

  • Catalog Number - IPCS1002

  • Color - Black

Packaging

  • 1 ea

EAN

00662381082626

Part #

165386

Catalog #

IPCS1002

Commercial reference

IPCS1002

12-Digit UPC:

662381082626

Amperage:

150-190 Amp

Applications:

Splice, Tap Power Connectors

Catalog Number:

IPCS1002

Color:

Black

Conductor Size:

8-1/0 AWG

Country of Origin:

France

ERP_productname:

NSI IPCS1002 INSULATION PIERCING CONNECTOR 1/0-8 MAIN , 2-10 TAP

Family Brand Name:

NSI Industries

Finish:

Thermal Plastic

Heights:

3.1 Inch

Length:

2.2 Inch

Material:

Plastic

Mounting Type:

Clamp

Size:

L=2.20 - W=1.80 - H=3.10

Sub Brand:

Easy-Tap

Type:

Insulation Piercing Connectors

Voltage:

600 Volt

Widths:

1.8 in

Wire Size:

8-0 AWG

SoneparProductId:

SKU_US_26729633

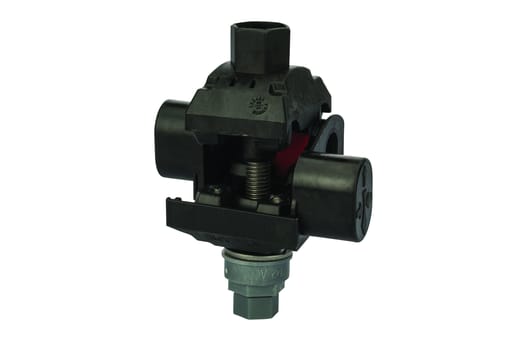

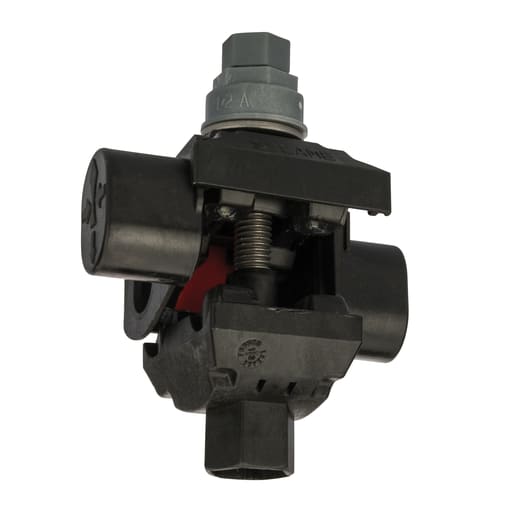

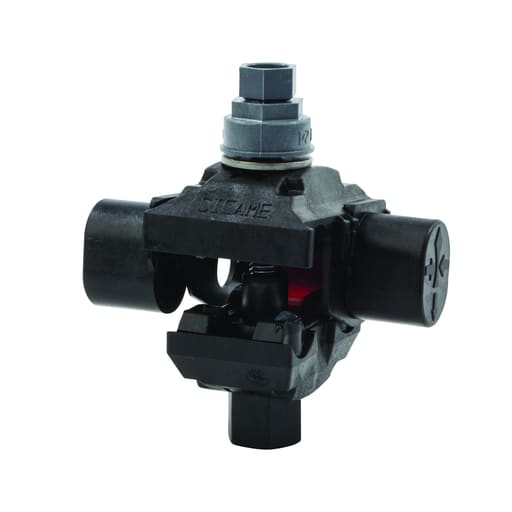

Insulation Piercing Connector 1/0 - 8 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free. Certifications and Standards: ANSI; Not UL - Features: Safe to use, versatile and reliable; No need to strip wire and totally insulated; No tape or cover needed; No contact at any point with a live part; Exclusive \"turbo spacer\" keeps tap side open while main conductor is being tightened.
