NSi - NSI IPCS3535 1/0 AWG to 350 MCM Main/Tap Black Thermal Plastic Insulation Piercing Connector

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662381082671

  • Amperage - 445-570 Amp

  • Applications - Splice, Tap Power Connectors

  • Catalog Number - IPCS3535

  • Color - Black

Packaging

  • 1 ea

EAN

00662381082671

Part #

249135

Catalog #

IPCS3535

Commercial reference

IPCS3535

12-Digit UPC:

662381082671

Amperage:

445-570 Amp

Applications:

Splice, Tap Power Connectors

Catalog Number:

IPCS3535

Color:

Black

Conductor Size:

1/0 AWG

Country of Origin:

France

ERP_productname:

NSI IPCS3535 INSUL PIERCING CONN

Family Brand Name:

NSI Industries

Finish:

Thermal Plastic

Heights:

4-1/2 Inch

Length:

3.9 Inch

Material:

Plastic

Mounting Type:

Clamp

Size:

L=3.90 - W=3.00 - H=4.50

Sub Brand:

Easy-Tap

Type:

Insulation Piercing Connectors

Voltage:

600 Volt

Widths:

3 in

Wire Size:

0 AWG-250 kcmil

SoneparProductId:

SKU_US_26729802

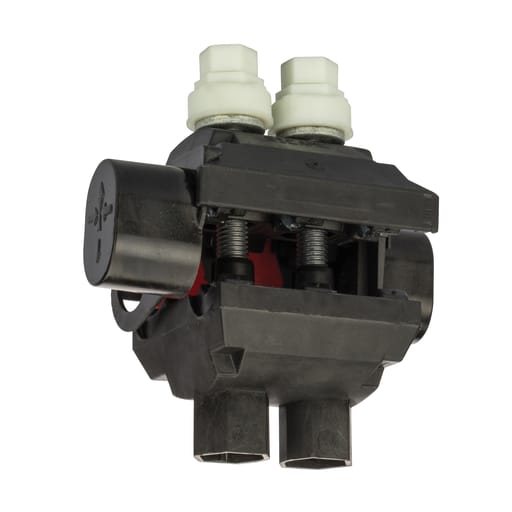

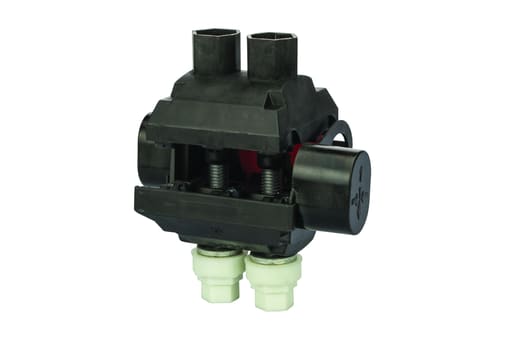

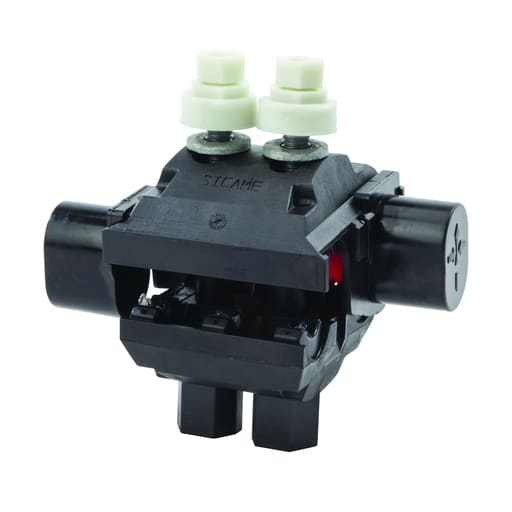

Insulation Piercing Connector 350 MCM - 1/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free. Certifications and Standards: ANSI; UL Listed; UL 486B - Features: Safe to use, versatile and reliable; No need to strip wire and totally insulated; No tape or cover needed; No contact at any point with a live part; Exclusive \"turbo spacer\" keeps tap side open while main conductor is being tightened.
