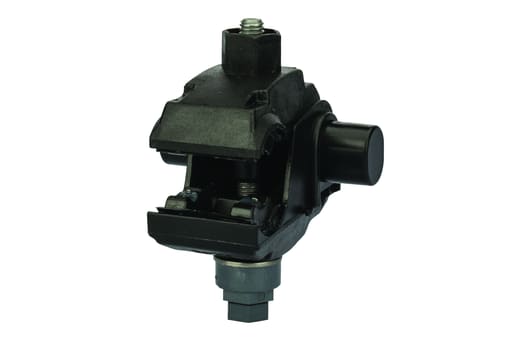

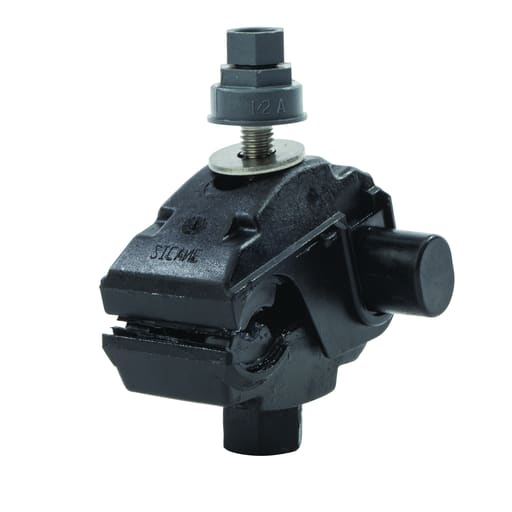

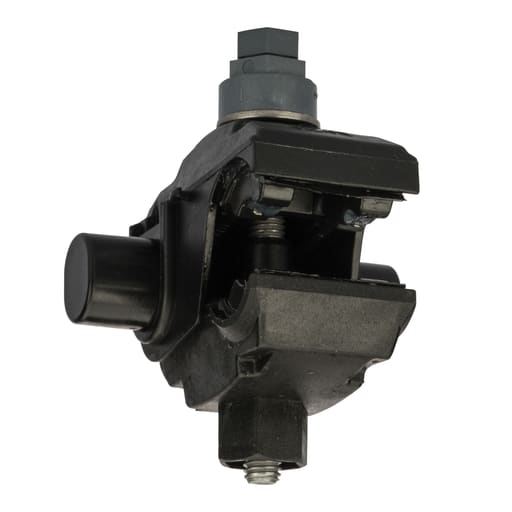

NSi - NSI IPCS7501 3/0 AWG to 750 MCM Main 14 to 10 AWG Tap Black Thermal Plastic Insulation Piercing Connector

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662381082619

  • Amperage - 40-55 Amp

  • Applications - Splice, Tap Power Connectors

  • Catalog Number - IPCS7501

  • Color - Black

Packaging

  • 1 ea

EAN

00662381082619

Part #

125321

Catalog #

IPCS7501

Commercial reference

IPCS7501

12-Digit UPC:

662381082619

Amperage:

40-55 Amp

Applications:

Splice, Tap Power Connectors

Catalog Number:

IPCS7501

Color:

Black

Conductor Size:

3/0 AWG

Country of Origin:

France

ERP_productname:

NSI IPCS7501 INSULATION PIERCING CONNECTOR 750-10 AWG

Family Brand Name:

NSI Industries

Finish:

Thermal Plastic

Heights:

3.7 Inch

Length:

2.6 Inch

Material:

Plastic

Mounting Type:

Clamp

Size:

L=2.60 - W=2.40 - H=3.70

Sub Brand:

Easy-Tap

Type:

Insulation Piercing Connectors

Voltage:

600 Volt

Widths:

2.4 in

Wire Size:

000 AWG-750 kcmil

SoneparProductId:

SKU_US_26729653

Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free. Certifications and Standards: ANSI; UL Listed; UL 486B - Features: Safe to use, versatile and reliable; No need to strip wire and totally insulated; No tape or cover needed; No contact at any point with a live part; Exclusive \"turbo spacer\" keeps tap side open while main conductor is being tightened.
